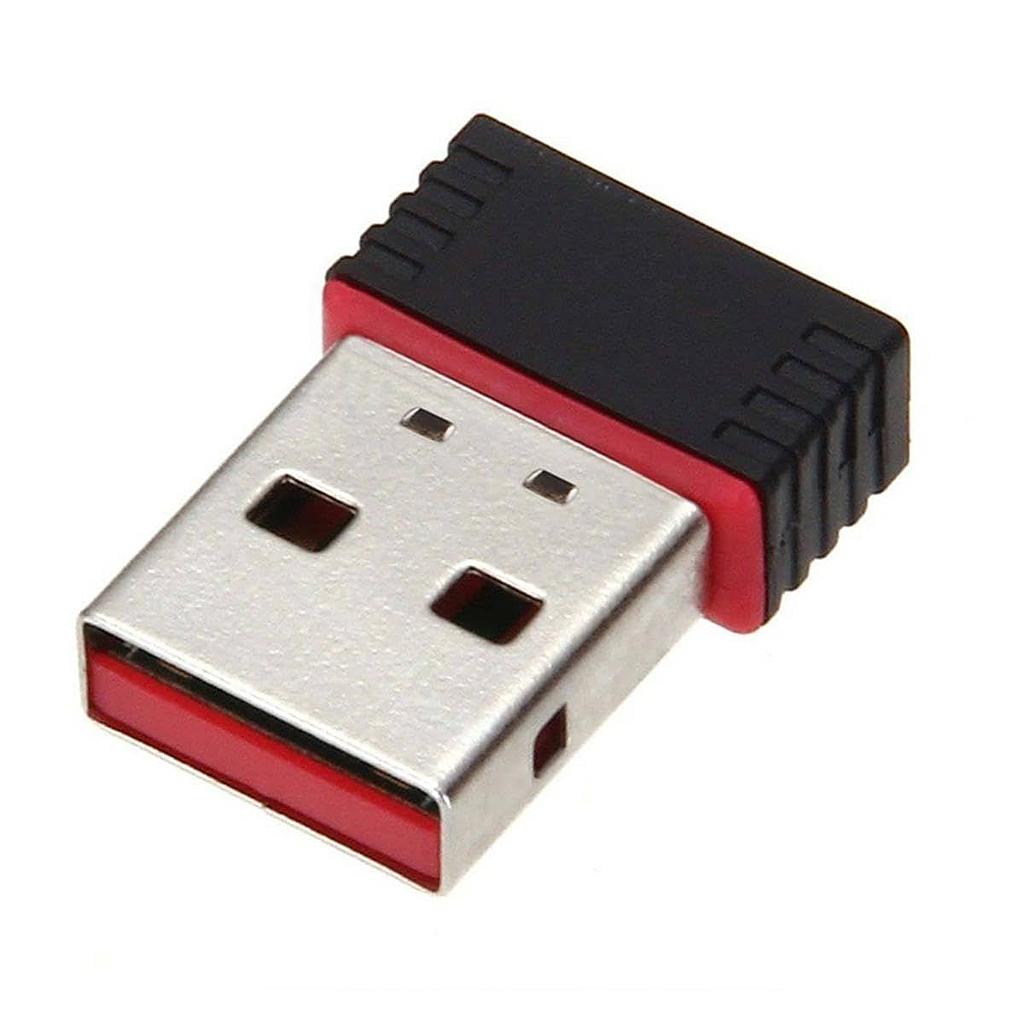

The Ultra-Mini 150Mbps Wireless-N USB Adapter
High-Speed Connectivity for PC, Tablet, TV Box, and CCTV Systems
In the modern connected world, a bulky WiFi card shouldn't be the reason your device stays offline. Our Ultra-Mini Wireless-N USB Adapter offers a high-performance networking solution in a frame no larger than a fingernail. Measuring just 0.43" × 0.78" × 0.24", this "Nano" adapter is designed to stay plugged into your USB port indefinitely without snagging or breaking.
Small Size, Big Speed
Don't let the miniature footprint fool you. This adapter utilizes IEEE 802.11n (Draft 2.0) technology to deliver transmission speeds up to 150Mbps. Whether you are streaming video on a PC, updating a tablet, or monitoring a remote CCTV system, the 150M rate ensures smooth data flow and minimal buffering.
Universal Compatibility
Designed to be the "Swiss Army Knife" of networking, this adapter is compatible with a wide range of hardware beyond just standard desktop computers:
TV Boxes: Upgrade your streaming experience with stable wireless.
CCTV Systems: Connect security DVRs to your local network wirelessly.
Tablets & Laptops: Replace a broken internal WiFi card with a plug-and-play USB solution.
Legacy OS Support: Fully compatible with Windows 2000, XP, Vista, Win 7/8, and LINUX.
Advanced Signal Technology
Equipped with an integrated 2dBi smart antenna, the adapter maximizes signal reception while maintaining its tiny profile. It operates on the 2.4GHz frequency with 13 operating channels, ensuring you can find a clear lane even in crowded apartment buildings or offices.
Intelligent Data Management
The adapter features Adaptive Transmission Rates, meaning it automatically shifts gears to maintain the most stable connection possible:
11n: Up to 150Mbps
11g: 6/9/12/18/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
Using CSMA/CA with ACK technology, the adapter effectively manages data collisions, ensuring that your packets arrive intact and your latency stays low.
Technical Specifications at a Glance
| Feature | Specification |
| Dimensions | 0.43'' × 0.78'' × 0.24'' |
| Interface | USB 2.0 |
| Max Speed | 150Mbps (802.11n) |
| Frequency Range | 2.4 to 2.4835 GHz |
| RF Power | 20dBm (Max) |
| Modulation | OFDM (11g/n), CCK/DQPSK/DBPSK (11b) |
| Operating Temp | 0°C to 40°C |
| LED Indicator | Status (Link/Activity) |
Built for Reliability
With a storage temperature range of -40°C to 70°C and a maximum RF power of 20dBm, this adapter is built to perform in varying environments. Its integrated status LED provides instant visual feedback, so you know exactly when you are connected and transmitting data.
