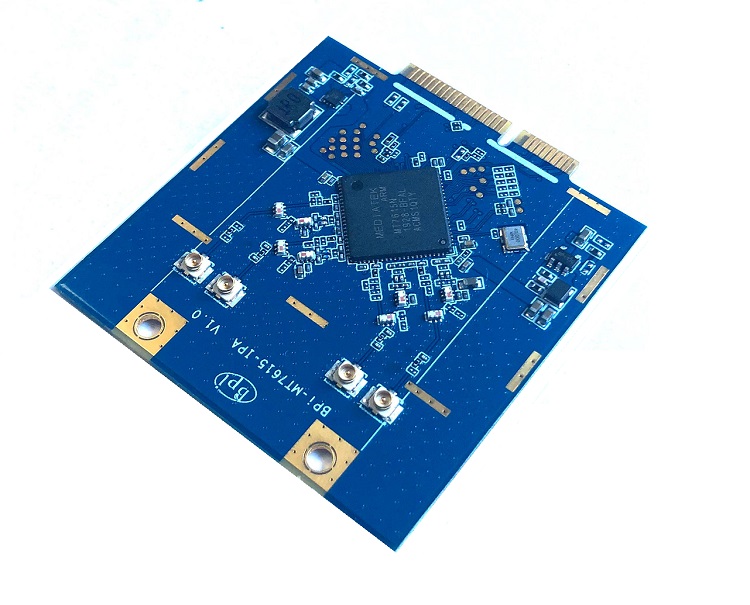

Banana Pi BPI-MT7615

681.59 681.59 ZAR


Add to Cart

South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
No Charge - 3 Appian Place, 373 Kent Ave, RandburgEffortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

BPI-MT7615 802.11

wifi 4x4 dual-band module

The MT7615 stands as an all-inclusive Wi-Fi single chip solution, boasting a robust 1733 Mbps PHY rate. This chip aligns seamlessly with the IEEE 802.11ac and IEEE 802.11a/b/n standards, delivering a wealth of features for high-quality wireless connectivity. It excels in maintaining consistent, cost-efficient data throughput even over extended distances.

Its finely tuned RF architecture and advanced baseband algorithms contribute to exceptional performance while keeping power consumption in check. The cleverly designed MAC (Media Access Control) architecture implements an efficient offload engine and hardware data processing accelerators, effectively relieving the host processor of Wi-Fi tasks. MT7615 is thoughtfully engineered to uphold industry-standard features across security, quality of service, and international regulations. This ensures peak performance for end users under any circumstances.

MT7615 is engineered to facilitate concurrent operation on dual bands, namely the 5GHz and 2.4GHz frequencies (DBDC - Dual-Band Dual-Concurrent). This enables diverse applications where one link operates on the 2.4GHz band, while another functions on the less congested 5GHz band, simultaneously.

With the introduction of the 802.11ac standard, multiuser MIMO (MU-MIMO) comes to the fore. MT7615 is equipped to support MU-MIMO in various configurations. This technology empowers an access point to utilize its antenna arrays for transmitting multiple frames to different clients concurrently and across the same frequency spectrum.

Support 4x4 4SS 11ac wave2 MU-MIMO and 160MHz channels
Mu-MIMO configurations of
-4 Users:4*1SS
-3 users:2*1ss+1*2ss or 3*1ss
-2 users:2*2ss or 1*1ss+1*2ss or 2*1ss
support 5,10,20,40,80,80+80,and 160MHz channels
Embedded ARM cortex R4 processor for full host CPU offload.
Embedded 32-bit RISC microprocessor.
iNIC Gen2 with full Wi-Fi offload
Highly integrated RF with 40nm low power process.

4T4R with support of up to 1733Mbps PHY rate.
Configurable 4x4/3x3 or 2x2n+2x2ac DBDC
Noise mitigation:
-Supports backgound scan funtion for fast channel switching.
-Supports spectrum analysis for non-Wi-Fi signals
Intellgent power saving
Hardware-based Airtime Fairness(QoS)
Integrate high effciency internal 2.4G/5G PAs
Intelligent Calibration(iCal)reduces the production time
Supports external PA/LNA/TRSW design

WoWLAN via GPIO(client mode),spports Host Sleep(AP mode)
Compact 12mm*12mm DRQFN118 package with PCIe Gen2 interface.
