BPI-Wifi6 Mini Router Board
Network Solution

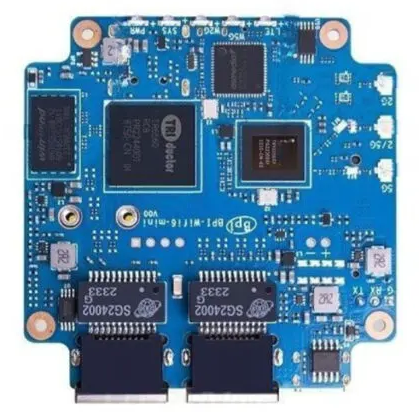

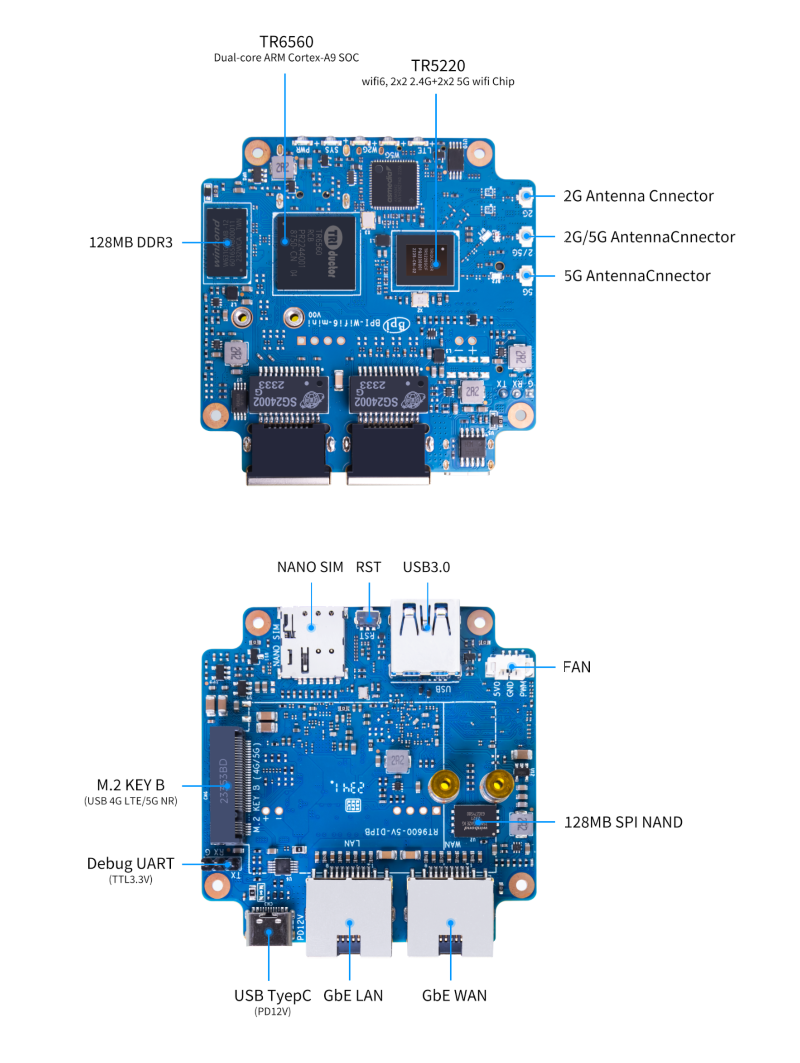

The Banana Pi BPI-WiFi6 Mini is an open-source router designed with the Triductor TR6560 + TR5220 WiFi SoC, offering a compact WiFi 6 solution. It features a high-performance dual-core ARM Cortex-A9 processor for efficient WiFi message forwarding and intelligent business processing. The router includes a high-performance LSW and hardware NAT, supporting up to 5Gbps message forwarding. It integrates 5*GE PHY, providing 1000Mbps network access capability, and supports hardware intelligent QoS.
Additionally, it supports dual-band 2.4GHz (40MHz, 2x2) and 5GHz (160MHz, 2x2) DBDC WiFi, with WiFi protocol support up to IEEE 802.11ax, and backward compatibility with 802.11a/b/g/n/ac. The router can achieve a maximum data rate of 3Gbps, with 2.4GHz reaching 573.5Mbps and 5GHz reaching 2401.9Mbps.
Banana Pi BPI-wifi6 mini same size as Banana Pi BPI-R3 Mini , so can use same case as BPI-R3 mini
Key Features
| Dual core ARM Cortex-A9 1.2G Hz |
| Integrated 2*GE PHY |
| Support 1000M/100M/10M rate mode self-negotiation and standard MIB |
| Supports IEEE802.11a/b/g/n/ac/ax wireless LAN communication protocol |
| Support Wifi AP mode and STA mode |
| Support WPA,WPA2, WPA3 encryption and decryption, pay Chinese WAPI standard |
| M.2 Key B interfce (USB 4G LTE/5G NR) |
