Banana Pi F2P (BPI-F2P)

1,868.80 1868.8 ZAR

1,625.04

Add to Cart



Deliveries:
South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
Collections:
No Charge - 3 Appian Place, 373 Kent Ave, Randburg Effortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to manufacturer's warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

Support

- Onboard eMMc OS flashing will cost an additional R400.
- MicroSD card flashing is an additional R100, you will need to purchase a MicroSD card as well.

Contact us

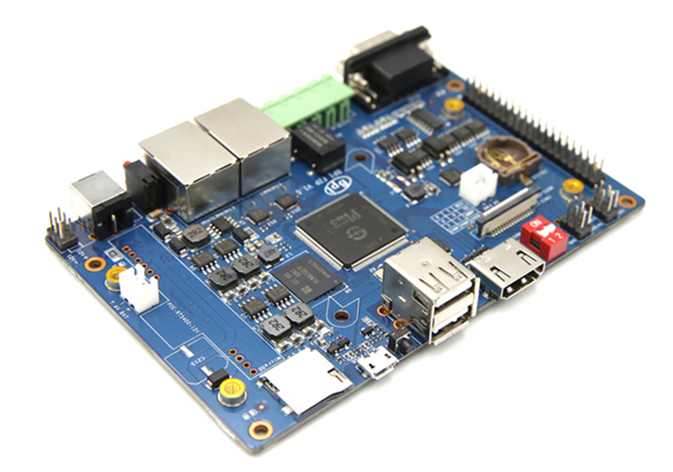

Banana Pi F2P

Industrial control board

Banana Pi BPI-F2P utilizes the Sunplus chip design, this is a industrial control board which uses Plus1(sp7021) design, the same as the Banana Pi BPI-F2S, it supports a PoE function with a PoE module and support RS232 and RS485 . This board can be used as an Industrial control gateway.


Hardware Specification of Banana pi BPI-F2P


SoC
Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz, one Arm A926 microprocessor, an 8051 core to handle I/Os, and 128MB or 512MB DDR3 DRAM
Storage
8GB eMMC flash, microSD card slot
Video Output
HDMI 1.4 output
Camera I/F
MIPI CSI connector
Connectivity
2 x 10/100M Ethernet
USB
2x USB 2.0 host ports, 1x micro USB port
Expansion

2 USB header interface

40-pin GPIO header compatible

7.4V Lithium battery power supply interface


RTC battery interface

PoE function support

Debugging
3-pin header for UART console, SWD ICE port
Security
TPM 2.0 via ST33TPH2EI2C secure element
Misc
Power switch, reset button, boot selection dip switch
Power Supply
12VDC via power barrel jack
Dimensions
130x85mm
Temperature Range
-40C ~ +85°C
