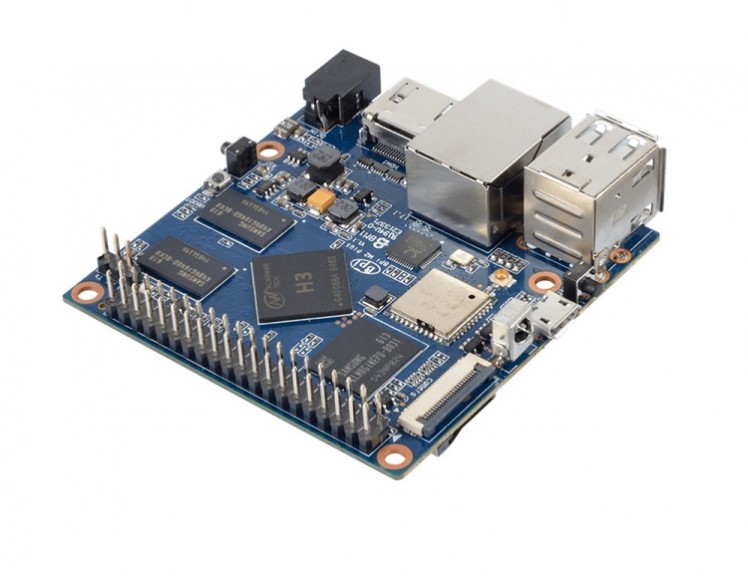

                                            Banana Pi M2+ (BPI-M2+)

Built for Multimedia Applications

The Banana PI BPI-M2+ is an open-source hardware platform that utilizes the Allwinner H3 (optionally H2+ chip and H5 chip) as its onboard processor. Despite its small form factor, measuring only 65mm*65mm, this mini-sized board packs powerful features.

The BPI-M2+ series supports a wide range of operating systems, including Android, Debian Linux, Ubuntu Linux, Raspberry Pi image, and more. With Banana PI, you can effortlessly run various applications, including games, as it offers 1080P high-definition video output and 4K support. Additionally, its GPIO is compatible with Raspberry Pi B+.

Micro SD Card
Power Supply

Hardware Specifications:

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0
Memory 1GB DDR3 (shared with GPU)
Flash 8GB eMMC flash onboard
Network 10/100/1000 Ethernet
WIFI&BT K016/SDIO AP6212 for Wifi &BT 4.0(option AP6181 AP6335)
Video Input A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps
Video Outputs Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
Audio Outputs HDMI
Power 5V/2A DC input can supply power, but USB OTG input don’t supply power
USB 2.0 ports two USB 2.0 HOST, one USB 2.0 OTG
GPIO 40 Pins Header,compatible with Raspberry Pi B+
LED Power led & Status led
IR IR input on board
OS Android, Ubuntu, Debian, Raspberry Pi Image


Support

Onboard eMMc OS flashing will cost an additional R400.
MicroSD card flashing is an additional R100, you will need to purchase a MicroSD card as well.
