Banana Pi M4-2GB
Dynamite comes in small packages

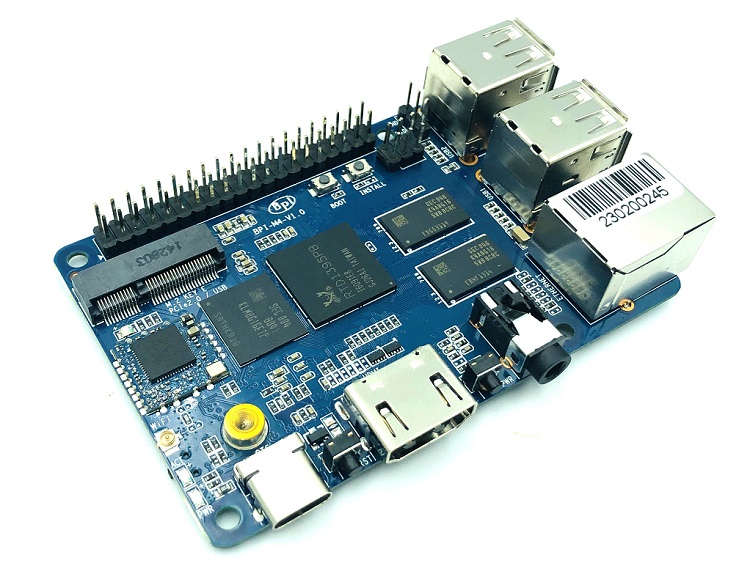

Banana Pi BPI-M4 is equipped with the Realtek RTD1395 chip and its a 64-bit quad-core A53 mini single board computer. It features 1 GB/2GB of RAM and 8 GB eMMC and also has onboard WiFi for b/g/n/ac and BT 4.2. On the ports side, the BPI-M4 has 4 USB 2.0 ports, 1 USB TYPE C port, 1 HDMI port, 1 audio jack. support M.2 Key E PCIE 2.0 interface. The RTD1395 also integrates the ARM Mali-470 Graphic Processing Unit (GPU) to accelerate 2D and 3D graphics processing.

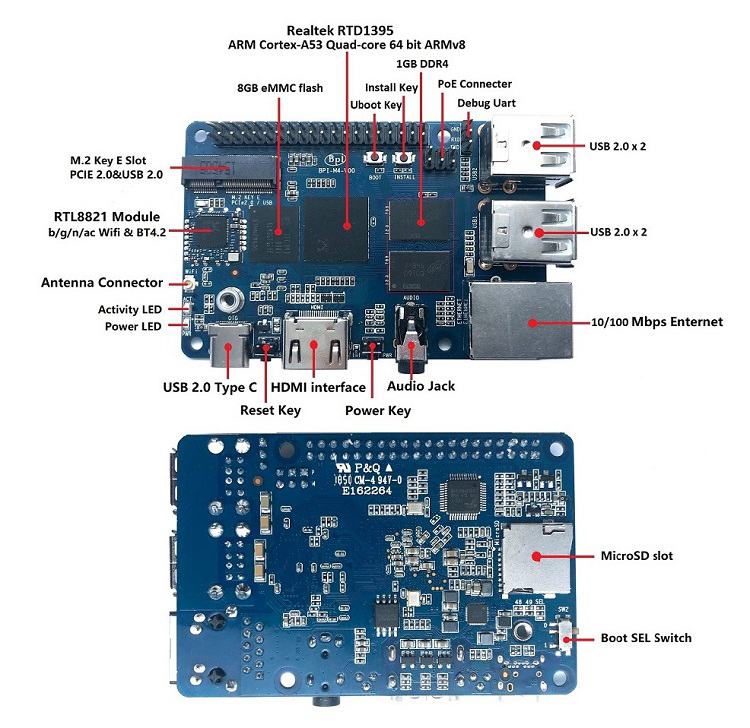

Hardware Specification of Banana pi BPI-M4-2GB
| CPU | Realtek RTD1395 ARM Cortex-A53 Quad-Core 64 Bit |
| GPU | Mali 470 MP4 GPU OpenGL ES 1.1/2.0 |
| Memory | 2 GB DDR4 |
| Storage | MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB |
| Network | 10/100 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n/AC + Bluetooth 4.2 |
| Video Output(s) | HDMI port and multi-channel audio output support 1080P H.264 H.265 2K/4K |
| Audio Output(s) | 3.5mm jack and HDMI |
| PCIE | M.2 Key E slot PCIE 2.0 and USB 2.0 |
| USB ports | USB 2.0 PORT (x4), USB 2.0 TYPE C(x1) |
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
| Switches | Reset, Power and U-boot |
| LED | Power Status and Activity status |
| Power Source | 5 volt @2A via Micro USB (TYPE C) or PoE support |
| Size & Weight | 92x60mm, 48g |
| OS | Android and Linux |
