Banana Pi M5 (BPI M5)

1,641.46 1641.46 ZAR

1,427.36

Add to Cart



Deliveries:
South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
Collections:
No Charge - 3 Appian Place, 373 Kent Ave, Randburg

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

Support

- Onboard eMMc OS flashing will cost an additional R400.
- MicroSD card flashing is an additional R100, you will need to purchase a MicroSD card as well.

Contact us

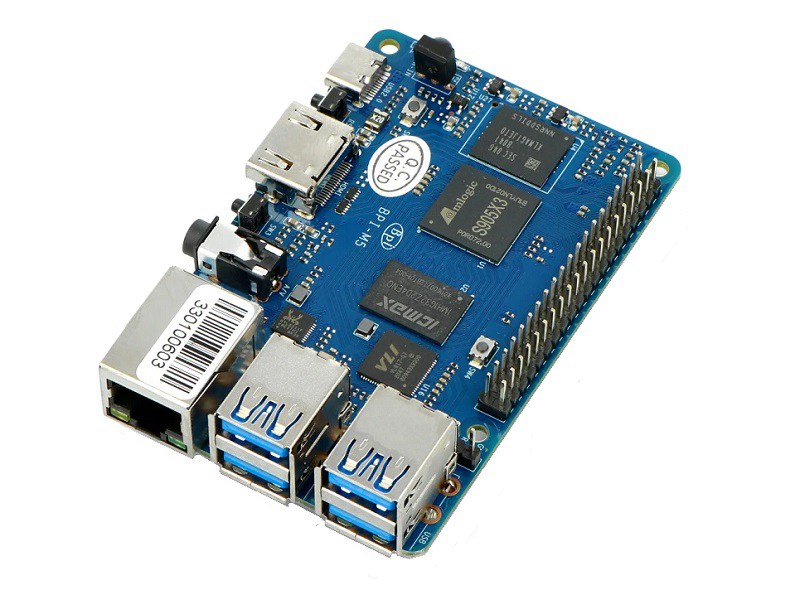

Banana Pi M5

New Generation Single Board Computer

Banana Pi BPI-M5 is the next generation single board computer from Banana Pi in 2020. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 4GB LPDDR4 memory and 16GB EMMC storage, and supports 4 USB 3.0 interface, a gigabit network port.


Hardware Specification of Banana pi BPI-M5

CPUAmlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPUMali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory 4 GB LPDDR4
Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Video Output(s) 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Audio Output(s) 3.5mm jack and 1 x HDMI digital output
Audio Output(s) USB 3.0 PORT (x4)
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches Reset, Power and U-boot
LED Power Status and Activity status
Power Source 5 volt @3A via Micro USB (TYPE C)
Size & Weight 92x60mm, 48g
OS Android and Linux
