Banana Pi Nano

Banana pi Nano replacement for Raspberry pi Nano

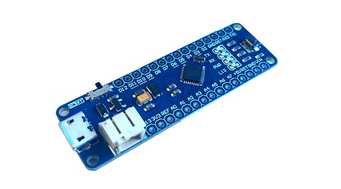

The BPI-Nano board is a small, complete, and breadboard-friendly board based on the ATmega328 (same Nano 3.0), It has more or less the same functionality of the Duemilanove. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Input and Output


Serial0(RX)、1(TX),Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the FTDI USB-to-TTL Serial chipea
external Interrupts2 and 3. These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value
PWM outputBPI-NANO have 3, 5, 6, 9, 10, and 11. Provide 8-bit PWM output with the analogWrite() function.SPI:10(SS)、11(MOSI)、12(MISO)、13(SCK),These pins support SPI communication, which, although provided by the underlying hardware, is not currently included in the Arduino language
L13There is a built-in LED connected to digital pin 13. When the pin is HIGH value, the LED is on, when the pin is LOW, it's off
I2C 4 (SDA) and 5 (SCL). Support I2C (TWI) communication using the Wire library (documentation on the Wiring website)


BPI-NANO can power with a MicroUSB port, PH2.0 port, and VIN port.

Power-dependent pins are as follows:

  • PH2.0 port: can input 7-12V,It can be controlled by a power switch.

  • 5V:5V power PIN。when use USB power,direct output USB supplied 5V voltage;When using external power supply, output 5V voltage after voltage stabilization.

  • 3V3:3.3V power output PIN,output Max is 50 mA.

  • VIN:Connect to external dc 5V power supply

  • REF:I/O reference voltage. Other devices can identify the development board I/O reference voltage through this pin.

Hardware Specification of Banana pi Nano

Microcontroller

ATmega328P

Operating Voltage

5V

Input Voltage: (recommended)

7-12V

Input Voltage: (limits)

6-20V

Digital I/O Pins

14(include 6 PWM output)

PWM PIN

6个

Analog Input Pins

6个

I/O output Max

20mA

3.3V output Max

50mA

ATmega328P @16 MHz.

32 KB Flash.

32KB(ATmega328P) and 0.5KB used by the bootloader

2 KB SRAM.

2KB(ATmega328P)

1 KB EEPROM

1KB(ATmega328P)
