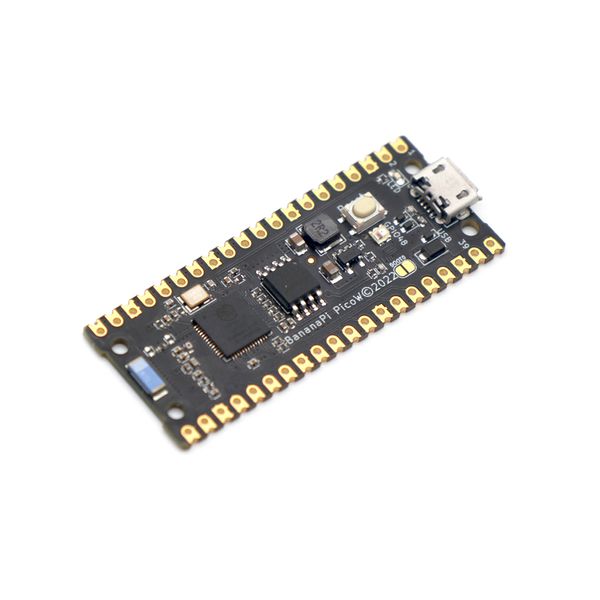

Banana Pi PicoW-S3

Espressif ESP32-S3

The Banana BPI-PicoW-S3 is a series of low-powered microcontrollers designed for IoT development projects:

The Banana pi Esp32-S3 is an MCU chip that integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE) and supports Long Range mode. The ESP32-S3 runs on an Xtensa® 32-bit LX7 dual-core processor with a high frequency of 240 MHz, 512 KB built-in SRAM (TCM), 45 programmable GPIO pins, and a rich communication interface. Esp32-s3 supports larger capacity of high-speed Octal SPI flash and off-chip RAM, and supports user-configured data caching and instruction caching.


  • Wi-Fi + Bluetooth 5 (LE) Wireless Connectivity: ESP32-S3 supports a 2.4 GHz Wi-Fi (802.11 b/g/n)

  • AI Acceleration Support: ESP32-S3

  • Rich IO interfaces: ESP32-S3 has 45 programmable GPIOs and common peripheral interfaces such as SPI, I2S, I2C, PWM, RMT, ADC, UART, SD/MMC host controller

  • Security mechanism: ESP32-S3 provides comprehensive security mechanism and protection measures for iot devices to prevent all kinds of malicious attacks and threats.


Hardware key features

SoC  ESP32-S3, Xtensa® 32-bit LX7 dual core
 Basic frequency
 240MHz MAX
 Operating temperature
 -40℃~+85℃
 On-chip ROM
384KB
On-chip SRAM 320KB
Extereal FLASH 8MB
WIFI IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
Bluetooth Bluetooth 5, Bluetooth mesh
GPIO BPI-PicoW-S3 has led out 27 available GPIOs
ADC 2 × 12-bit SAR ADC supporting 18 analog channel inputs
TOUCH Capacitive Touch Sensor 14
SPI 4
I2C 2. Support master or slave mode
I2S 2, input and output of serial stereo data
LCD 1, support 8-bit ~16-bit parallel RGB, I8080, MOTO6800 interface
CAMERA 1, supports 8-bit ~16-bit DVP image sensor interface
UART 3, supports asynchronous communication (RS232 and RS485) and IrDA
PWM 8 independent channels, 14-bit precision
MCPWM2
USB 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
USB Serial/JTAG Controller 1, USB full speed standard, CDC-ACM, JTAG
Temperature sensor 1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip
SD/MMC 1 × SDIO host interface, with 2 card slots, supports SD card 3.0 and 3.01, SDIO 3.0, CE-ATA 1.1, MMC 4.41, eMMC 4.5 and 4.51
TWAI® Controller 1, compatible with ISO11898-1 (CAN specification 2.0)
Generic DMA Controller 5 receive channels and 5 transmit channels
RMT 4-channel transmit, 4-channel receive, shared 384 x 32-bit RAM
Pulse Counter 4 pulse count controllers (units), each unit has 2 independent channels
Timer 4 × 54-bit general-purpose timers, 16-bit clock prescaler, 1 × 52-bit system timer, 3 × watchdog timers
External crystal 40Mhz
RTC and Low Power Management Power Management Unit (PMU) + Ultra Low Power Coprocessor (ULP)
Low power consumption current 10uA
Working Voltage 3.3V
Input voltage 3.3V~5.5V
Maximum discharge current [email protected] DC/DC
Controllable full color LED 1
Controllable monochrome LED 1
