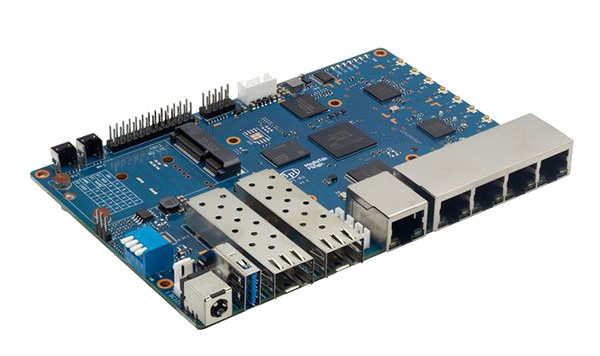

                                  Banana Pi BPI-R3 Router board

                                  This powerful development board features dual-band wireless

                                  This powerful development board features MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications.

                                  Micro SD Card
                                  Power Supply


                                  CPUMediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
                                  2 GB DDR4
                                   On board Storage
                                  MicroSD \(TF\) card,8GB eMMC onboard
                                  26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
                                   On board Network
                                  5 Port 10/100/1000Mbps Ethernet
                                  2 SFP 2.5GbE
                                  Wifi Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
                                  mini PCIEMini PCIe via USB
                                  M.2 interface M.2 KEY-M PCIe inerface
                                  USB 1 USB 3.0 host ,2 USB interface with slot.
                                  Buttons Reset button,WPS botton, boot switch
                                  Leds Power status Led and RJ45 Led
                                  DC Power 12V/2A with DC in
                                  Sizes 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2

                                  Wifi 6 has many advantages:

                                  including lower latency
                                  larger bandwidth
                                  faster transmission rates
                                  Supporting the 6GHz band
                                  low-latency wi-fi connection
                                  AR/VR and other applications
                                  Larger bandwidth

                                  Key Features
                                   MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
                                   Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
                                   2G DDR RAM
                                  8G eMMC flash
                                   2 SFP 2.5GbE
                                  5 GbE network port
                                  POE support (optional)
                                  Mini PCIe via USB
                                  M.2 KEY-E PCIe inerface
                                  Mciro SD card interfact
                                  26 PIN GPIO
