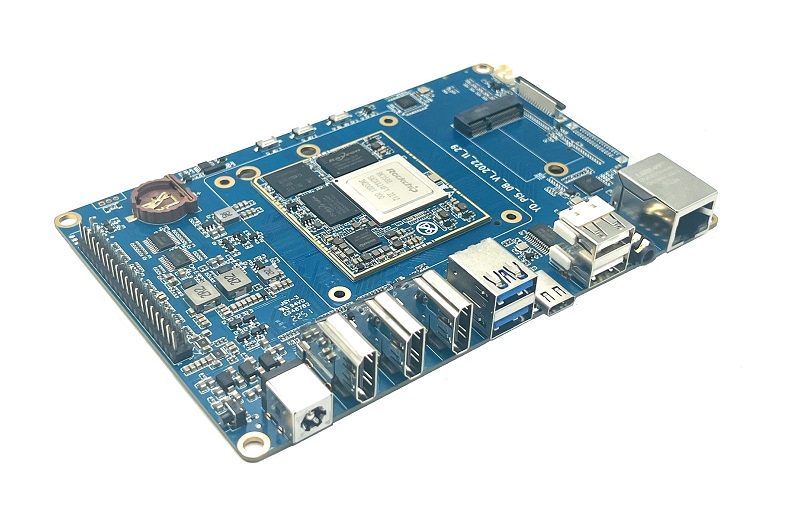

Banana Pi W3 (BPI-W3) Router board 8GB



Banana Pi W3 (BPI-W3) Router board 8GB

A powerful development Router board

The Banana Pi BPI-W3 is a single-board computer specifically designed and developed by the Bananapi team for professional and enterprise users. It is equipped with the powerful Rockchip RK3588 SoC, featuring a quad-core ARM Cortex-A76 and a quad-core Cortex-A55, resulting in an eight-core CPU processor with dynamic frequency scaling up to 2.4GHz. This ensures high-performance computing capabilities.

The board includes an embedded high-performance 3D and 2D image acceleration module, as well as an AI accelerator NPU with a built-in computing power of 6 TOPS. These features enable advanced graphics processing and AI-related tasks.

In terms of memory, the BPI-W3 supports up to 32GB of 64-bit LPDDR4X RAM, providing ample space for multitasking and resource-intensive applications. It also offers various connectivity options, such as HDMI OUT supporting up to 8K@60 resolution, HDMI IN, MIPI DSI, MIPI CSI, a 3.5mm jack with a microphone, USB ports, 2.5GbE LAN, PCIe 3.0 x4, PCIe 2.0x2, a 40-pin expansion header, RTC, POE, an SD card slot, DC power input, and a Type-C port.

These specifications make the Banana Pi BPI-W3 a versatile and powerful single-board computer suitable for a range of applications in professional and enterprise settings.

Specifications:

SOC	RockChip RK3588
CPU	Quad Core A76+ Quad Core A55 ,use 8nm , 2.4GHz
GPU	ARM Mali-G610 MP4 GPU，Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU	6 TOPS， Support INT4/INT8/INT16 mixed operation, Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Encode&Decode	encode：8K@60fps H.265/VP9/AVS2、8K@30fps H.264 AVC/MVC、4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 ,decode：8K@30fps H.265 / H.264
Ram	4GB/8GB/16GB（up to 32GB）64bit LPDDR4/LPDDR4x/LPDDR5，Default LPDDR4 8GB
Flash	16GB/32GB/64GB/128GB/256GB eMMC， support MicroSD card slot， Default:32GB
M2 Key M	The interface supports extension SSD
network	2.5G network port（RLT8125BS）
video output	2 x HDMI2.1(just one support 8K@60fps or 4K@120fps，other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps),

video input	1 x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0
Voice	2 x HDMI voice output ,1 x DP1.4 voice output,1 x headphone （es8316）
Wireless	M2 E key interface support sdio、pcie、usb BT&wifi（AP6256，Intel AX210）
USB	2 x USB3.1,2 x USB2.0,1x USB-C（DP1.4(8K@30fps)/OTG/PD fast charging）
Others	Fan、RTC、LED、debug
Button	Power Button、Reset Button、 Recovery Button、Root Button
GPIO	40 x GPIO（UART、SPI、I2C、I2S、PWM、ADC、 GPIO、 5V power 、3.3V power）
Power	DC 12V/2.5A bore diameter 2.5mm，support USB Type-C PD 2.0 ，9V/2A, 12V/2A, 15V/2A，Support 12V POE power supply
System	Android 12.0、Ubuntu、Debian11、Buildroot、Kylin Linux
Size	148 mm × 100.5mm
