                                                       MYD-C335X-V4 Series

                                                       MYD-C3358-V4-512N512D-100-C Development Board

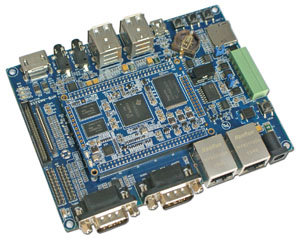

                                                      The MYD-C335X-V4 Development Board by MYIR is a high-performance ARM Evaluation Module (EVM) featuring the MYC-C335X-V4 as its core controller. It utilizes the Texas Instruments (TI) Sitara AM335x family of ARM Cortex-A8 Microprocessors (MPUs), which operate at up to 1GHz. These MPUs offer high DMIPs at a low cost, optional 3D graphics acceleration, and essential peripherals. They include industrial interface options like EtherCAT and PROFIBUS and support high-level operating systems such as Linux, Android, and Windows CE. With robust graphics and connectivity capabilities, the TI AM335x MPUs are ideal for applications in home automation, industrial automation, enterprise/educational tablets, portable navigation devices, and networking. Additionally, the board is designed for industrial embedded applications, capable of operating in harsh environments with an extended temperature range of -40 to +85 degrees Celsius.



                                                      MYC-C335X-V4 as Controller Board
                                                      - Up to 1GHz TI AM335X Series ARM Cortex-A8 Processors
                                                      - 512MB DDR3 SDRAM (256MB compatible)
                                                      - 512MB Nand Flash (256MB compatible)
                                                      - Serial ports, 4 x USB Host, OTG, 2 x Gigabit Ethernet, CAN, RS485,  TF, Audio
                                                      - Supports HDMI and LCD Display
                                                      - Optional 4.3- or 7- inch LCD Module
                                                      - Supports for Linux 4.1.18

                                                      The MYD-C335X-V4 series ARM Cortex-A8 boards share many common features, with specific differences based on the AM335x Cortex-A8 CPU variations. You can see the differences in the image above.

                                                      The MYD-C335X-V4 board includes Linux 4.1.18 software packages, detailed documentation, essential cable accessories, and optional 4.3- and 7-inch LCDs (with touch screens). This comprehensive starter kit facilitates a quick and efficient evaluation of the AM335x Cortex-A8 MPUs.


                                                       Mechanical Parameters

                                                      Dimensions: 130mm x 100mm (base board), 70mm x 50mm (SOM)
                                                      PCB Layers: 4-layer design (base board), 8-layer design (SOM)
                                                      Power supply: +5V/2A (base board), +3.3V/0.8A (SOM)
                                                      Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)

                                                      The MYD-C335X-V4 Controller Board (MYC-C335X-V4) Processor

                                                      TI AM3352, AM3354, AM3356, AM3357, AM3358, AM3359 (15x15 mm, 0.8-mm ball pitch, ZCZ package)
                                                      - 800MHz ARM Cortex-A8 32-bit RISC MPU (Up to 1GHz)
                                                      - NEON™ SIMD Coprocessor
                                                      - 32KB/32KB of L1 Instruction/Data Cache with Single-Error Detection (parity)
                                                      - 256KB of L2 Cache with Error Correcting Code (ECC)
                                                      - SGX530 Graphics Engine
                                                      - Programmable Real-Time Unit Subsystem


                                                       512MB (2*256MB) DDR3 SDRAM (2*128MB compatible)
                                                       512MB Nand Flash (256MB compatible)

                                                       Peripherals and Signals Routed to Pins

                                                      • On-board Gigabit Ethernet PHY
                                                      • One power indicator (Red LED)
                                                      • One user LED (Green)
                                                      • Two 2.0mm pitch 60-pin expansion connectors can carry out interfaces below
                                                        - 2 x USB2.0 OTG ports
                                                        - 6 x Serial ports
                                                        - 2 x I2C
                                                        - 1 x SPI
                                                        - 7 x ADC
                                                        - 2 x PWM
                                                        - 3 x SDIO
                                                      • One 2.0mm pitch 26-pin expansion connector
                                                      • One 2.0mm pitch 10-pin expansion connector

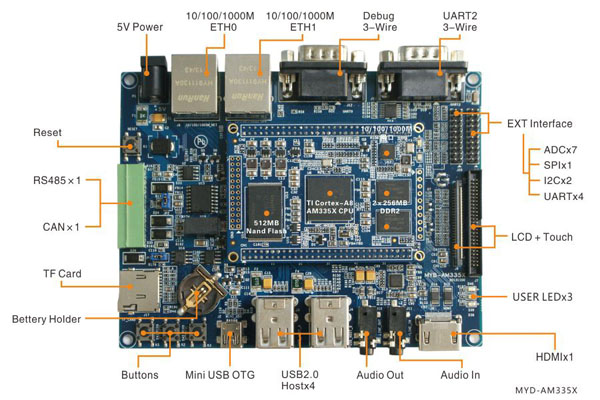

                                                       The MYD-C335X-V4 Base Board

                                                      Serial ports
                                                      - 1 x 3-wire RS232 Debug serial port (DB9)
                                                      - 1 x 3-wire RS232 serial port (UART1)
                                                      - 1 x RS485 (with isolation)
                                                      - 4 x USB2.0 Host ports
                                                      - 1 x USB2.0 OTG ports
                                                      2 x 10/100/1000Mbps Ethernet interfaces
                                                      1 x CAN interface (with isolation)
                                                      1 x TF card slot
                                                      1 x HDMI interface
                                                      1 x LCD interface (16-bit true color, supports optional 4.3-inch and 7-inch TFT LCD with 4.3-inch resistive or 7-inch resistive or 7-inch capacitive touch screen)
                                                      1 x 4-wire resistive touch screen interface
                                                      1 x Audio input port (3.5mm jack)
                                                      1 x Stereo Audio output port (3.5mm jack)
                                                      4 x Buttons (1 x Reset button, 3 x User buttons)
                                                      1 x Power indicator (Red LED)
                                                      2 x 2.0mm 20-pin expansion connectors
                                                      - 7 x ADC
                                                      - 1 x SPI
                                                      - 2 x I2C
                                                      - 4 x UART
                                                       OS Support
                                                      • Linux 4.1.18
