MYD-C7Z010/20 Development Board

5,635.00 5635.0 ZAR

4,900.00

This combination does not exist.

Add to Cart



Deliveries typically 2-4 working days in South Africa. All items subject to manufacturers guarantee and warranty. Delivery charges R115 or collect free from our office in Randburg.

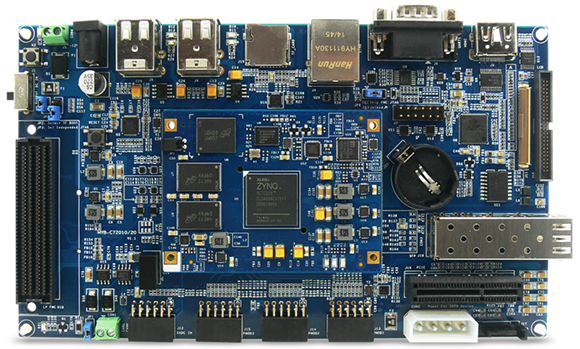

MYC-C7Z010/20 CPU development board

It is a high-performance and low-cost development platform for evaluation and prototype based on Xilinx Zynq-7000 All Programmable SoC family.

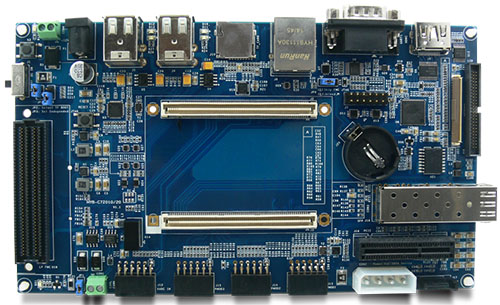

This development board is built around the MYC-C7Z010/20 CPU Module which is compact Linux-ready ZYNQ-based SOM (System on Module). It combines the Xilinx Zynq-7010 or Zynq-7020 SoC device, 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog. It is connected to the base board through two 0.8mm pitch 140-pin board-to-board connectors.

The board takes full features of the Zynq-7010 and Zynq-7020 SoCs’ powerful dual-core ARM Cortex-A9 processing system and Xilinx 7-series Field Programmable Gate Array (FPGA) logic unit to create a rich set of peripherals to the base board through headers and connectors including one RS232 serial port, four USB Host ports, one Gigabit Ethernet port, CAN, HDMI, LCD/Touch screen, TF card slot, RTC, one XADC header to allow you take advantage of Xilinx XADC; it has three PMoD headers to meet your I/O needs with PMoDs (only for 7020); it also has a low-pin count FMC connector to allow various FMC cards for custom I/O options. User can integrate a MYC-C7Z010 or a MYC-C7Z020 SOM on the same base board, thus making two variants of Zynq evaluation boards.


The MYD-C7Z010/20 development board is delivered with the necessary cable accessories & MYIR offers optional 4.3-inch and 7-inch LCD Module. The board is preloaded with Linux.


MYD-C7Z010/20 Development Board

Specifications for MYD-C7Z010/20 Development Board

Zync 010 or 020
Grade Commercial or Industrial

Zync

010 , 020

Grade

Commercial , Industrial
