MYD-JX8MX Development Board

5,724.70 5724.7 ZAR

4,978.00

This combination does not exist.

Add to Cart


Deliveries within South Africa 2 -4 days. Items are subject to manufacturers warranty period. Collect from our Randburg shop to avoid delivery charges.

    MYD-JX8MX Development Board

    A plethora of connectivity options

      The MYD-JX8MX development board uses the i.MX 8M Quad processor from the NXP i.MX 8M family (i.MX 8M Dual / 8M QuadLite / 8M Quad) of applications processors and includes a 1.3GHz quad Cortex-A53 core plus a 266MHz Cortex-M4 core. The board targets applications from consumer home audio to industrial building automation and mobile computers requiring high-performance and low-power processors.

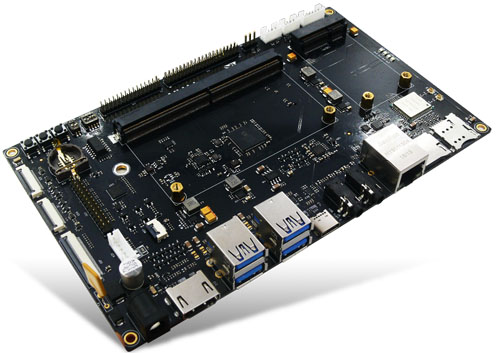

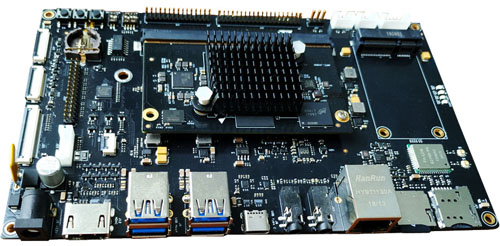

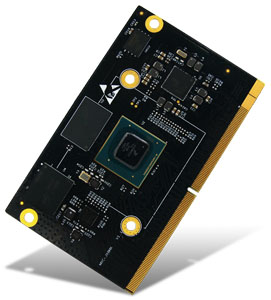

    The MYD-JX8MX has a base board with installed MYC-JX8MX CPU Module through a 314-pin MXM 3.0 Expansion Connector. The MYC-JX8MX CPU Module is a highly-integrated ARM SoM with the core components including i.MX 8M processor, 1GB or 2GB LPDDR4, 8GB eMMC Flash, 256Mbit QSPI Flash, Gigabit Ethernet PHY and ROHM PMIC. The base board has brought out rich peripherals through connectors and headers such as 4 x USB 3.0 Host ports and 1 x USB 3.0 Host/Device port, Gigabit Ethernet, TF card slot, USB based Mini PCIe interface for 4G LTE Module, WiFi/Bluetooth, Audio In/Out, HDMI, 2 x MIPI-CSI, 2 x LVDS interfaces, NVMe PCIe M.2 2280 SSD Interface, etc.


    Controller Board


    Processor

    NXP i.MX 8M Quad Processor based on 1.3GHz Quad ARM Cortex-A53 and 266MHz Cortex-M4 cores (MIMX8MQ6CVAHZAB by default)

    Memory

    1GB / 2 GB LPDDR4 (supports up to 4GB LPDDR4)
    8GB eMMC Flash (supports up to 64GB eMMC)
    256Mbit QSPI Flash

    Peripherals and Signals Routed to Pins

    One 10/100/1000M Ethernet PHY
    Power Management IC (ROHM BD71837MWV)
    0.5mm pitch 314-pin MXM 3.0 Expansion Connector
    - 1 x 10/100/1000Mbps Ethernet
    - 3 x Serial ports
    - 3 x I2C, 2 x SPI, 4 x PWM
    - 3 x USB 3.0
    - 2 x PCIe
    - 6 x I2S / SAI
    - 2 x MIPI Camera Sensor Interface
    - 1 x JTAG
    - 1 x HDMI 2.0a output
    - Up to 108 GPIOs

    Base Board



        Serial ports
         - Debug serial port (TTL)
         - 2 x RS232 serial port
        USB
         - 4 x USB3.0 Host ports (Type A)
         - 1 x USB3.0 Host/Device port (Type C)
         - 1 x Mini-PCIe interface (for 4G LTE Module)
        1 x SIM card slot
        1 x 10/100/1000 Mbps Ethernet interface (RJ45)
        WiFi/Bluetooth Module
        2 x external antenna connectors (one for WiFi and one for Bluetooth)
        1 x NVMe PCIe M.2 2280 SSD Interface
        1 x TF card slot
        2 x MIPI-CSI Camera inputs (4-lane each, 24-pin FPC connector)
        1 x MIPI-DSI Display Interface (supports display resolution up to 1920 x 1080 at 60 Hz)
        1 x LVDS LCD interface (40-pin FPC connector)
        1 x LVDS LCD interface (30-pin header connector)
        1 x 6-pin capacitive touch screen interface
        1 x 6-pin backlight interface
        1 x HDMI 2.0a Display Interface (supports resolution up to 4096 x 2160 at 60 Hz)
        Audio Input/Output
        Battery backed RTC
        3 x Buttons (one for RESET, one for ON/OFF and one for USER)
        1 x 2.0mm 2*20-pin male expansion header
        1 x 2.0mm 2*15-pin male expansion header

    OS Support

        Linux 4.19.35
        Android 9.0.0

    Specifications for MYD-JX8MX Development Board

    MQ6 8E1D-130-E or 8E2D-130-E

    MQ6

    8E1D-130-E , 8E2D-130-E
