MyIR-335X-V4 (TI AM335x) Module

1,568.26 1568.26 ZAR


Add to Cart

South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
No Charge - 3 Appian Place, 373 Kent Ave, RandburgEffortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

                MYC-C335X-V4 (TI AM335x) module

                Module for MYD-C335X-V4 Development Board

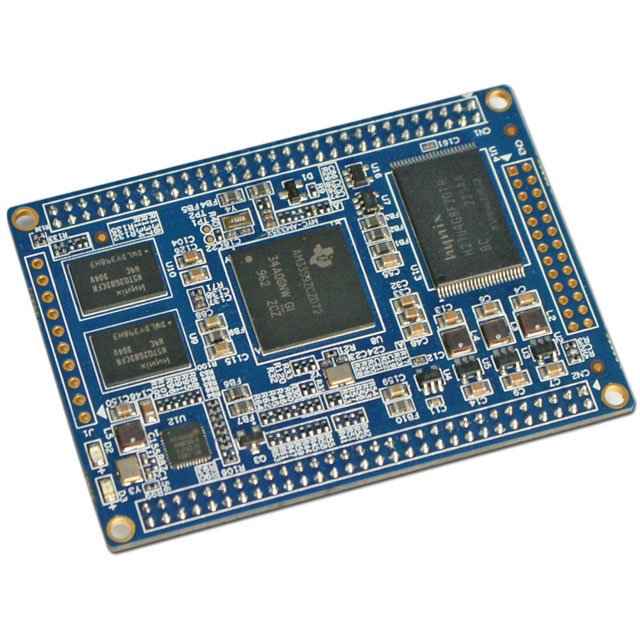

                Measuring just 70mm by 50mm, the MYC-C335X-V4 is a highly integrated, cost-effective ARM embedded System on Module (SOM) that supports Texas Instruments (TI) Sitara AM335x series (AM3352, AM3354, AM3356, AM3357, AM3358, and AM3359) ARM Cortex-A8 processors. It features PowerVR™ SGX530 for 2D and 3D graphics acceleration and PRU/ICSS for real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and more.

                The MYC-C335X-V4 integrates the AM335x processor, 512MB DDR3 SDRAM, 512MB NAND Flash, and a Gigabit Ethernet PHY chip, making it an ideal core for your embedded system. It includes two 2.0mm pitch 60-pin male expansion connectors for seamless connection with your baseboard, allowing the baseboard to interface with most of the I/O signals from the SOM. Additionally, a 2.0mm pitch 26-pin interface and a 2.54mm pitch 10-pin interface with reserved solder joints extend a few signals for specialized purposes.

                The TI AM335x microprocessors, based on the ARM Cortex-A8, operating at up to 1GHz, are enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The device

                Supports the following high-level operating systems (HLOSs) that are available free of charge from TI:



                 • Linux®
                 • Android™

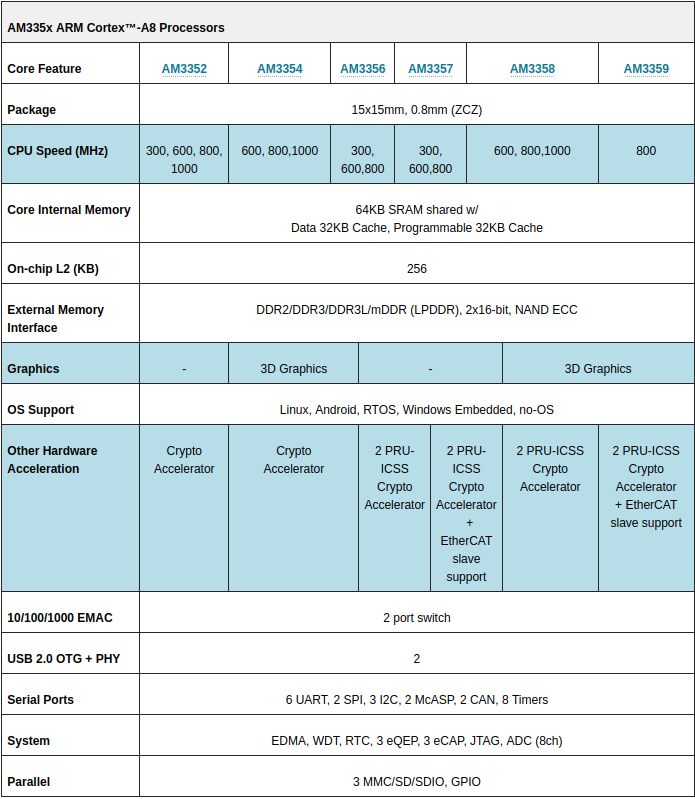

                The AM335x microprocessor contains these subsystems:
                 • Microprocessor unit (MPU) subsystem based on the ARM Cortex-A8 microprocessor.
                 • POWERVR SGX™ Graphics Accelerator subsystem for 3D graphics acceleration to support display  and gaming effects.
                 • The Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS) is separate  from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility.
                 The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT,
                 PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and others.

                  MYC-C335X-V4 (TI AM335x) embeded mo
