ODROID H4 Cube Case

R 681.13 681.13 ZAR

R 592.29

Add to Cart


Deliveries:
South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
Collections:
No Charge - 3 Appian Place, 373 Kent Ave, Randburg Effortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to manufacturer's warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

ODROID-H4 Cube Case

Enclosure

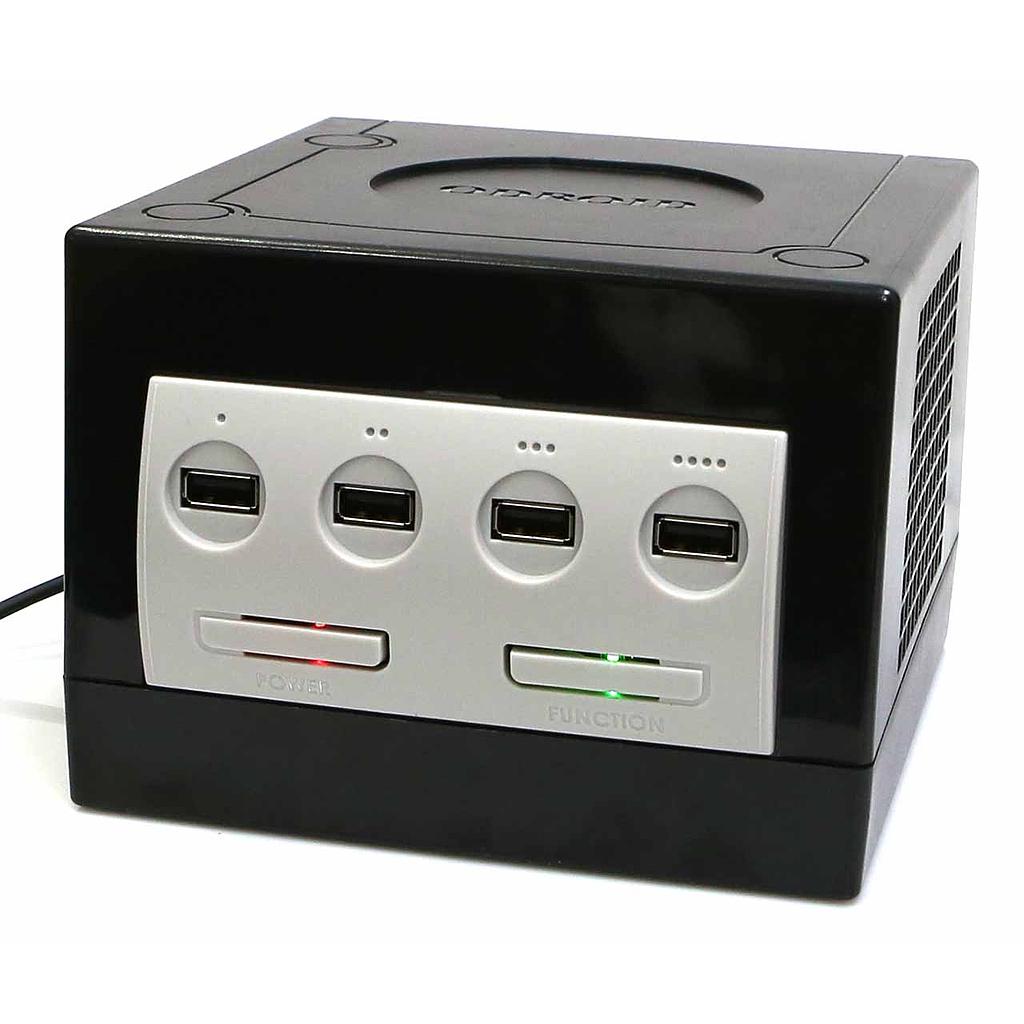

The H4 Cube Case is designed to house an ODROID-H4, H4+, or H4 Ultra board, along with optional support for two 2.5" SATA SSDs, a Net Card, and a 92x92x15mm cooling fan. The front panel features four USB ports for easy connection of game controllers and other input/output devices.

Please note that 2.5” SATA SSDs (or HDDs) are only compatible with the ODROID-H4+ and H4 Ultra, as the ODROID-H4 lacks SATA ports. Alternatively, you can swap the Net Card for an M.2 2×2 Card and use two NVMe SSDs with any of the three H4 board models.

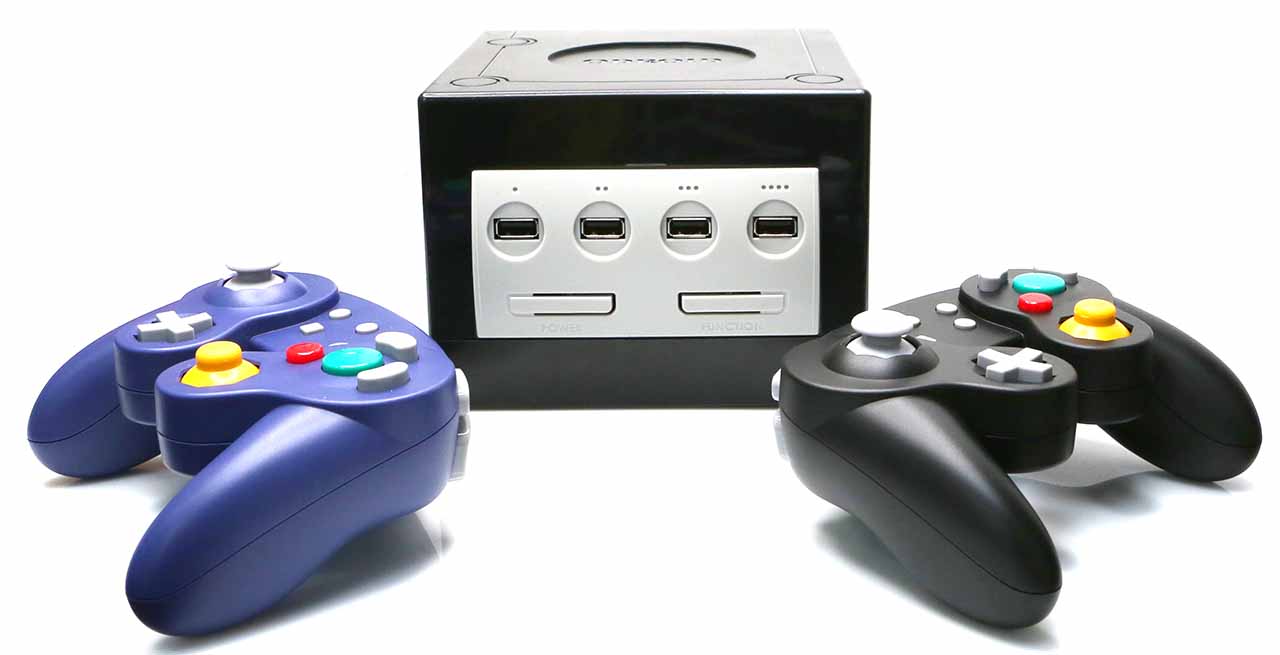

Nostalgic gamers from the early 2000s will appreciate our tribute to a classic game console from 2001.

WARNING:

  • Be careful matching pin 1 of the Cube Case USB hub board and pin 1 of the H4 board header.
  • The USB ports on the front side do NOT support wake-up in suspend/sleep mode.

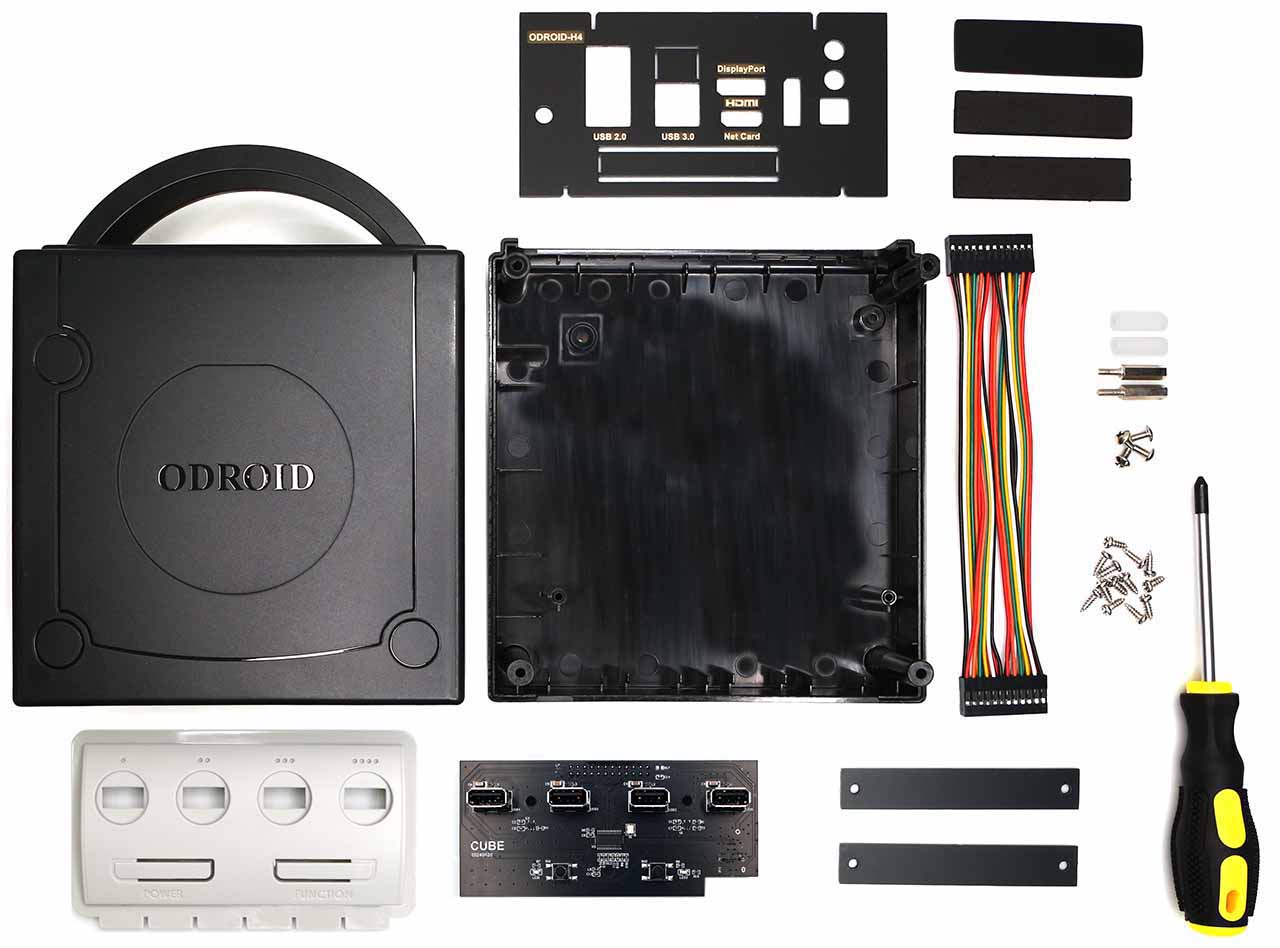

 What you get in the box

  • Case Top
  • Case Bottom
  • Front panel
  • USB hub board
  • Rear panel
  • SATA SSD bracket x 2
  • M3 screw x 4
  • Screw for plastic parts x 13
  • Rubber feet x 4
  • Screwdriver x 1
  • 20mm PCB support plastic M3 x 2 (to be used when a Net Card or M.2 2×2 Card is not installed)
  • 16mm PCB support metal M3 x 2 (to be used when a Net Card or M.2 2×2 Card is installed)
  • 24-pin wire cable (see WARNING below)
