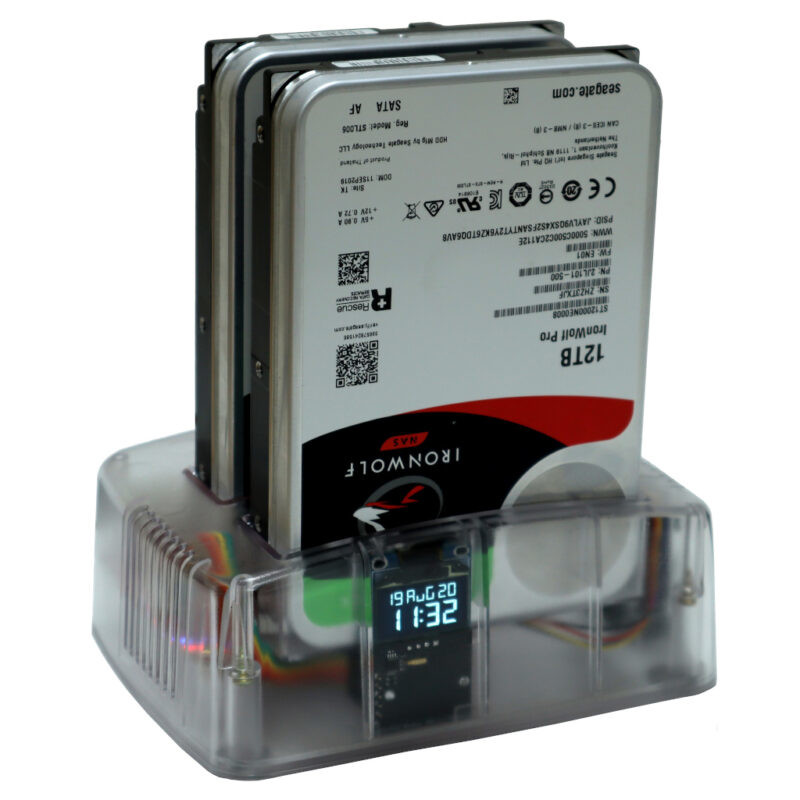

The ODROID HC4
Mini PC with a dual SATA drive dock which makes an affordable solution for a network attached storage (NAS) server.
This server centralizes data and enables users to share and stream multimedia files to phones, tablets and other devices on a network. Ideal for groups, and single users. A wide variety of software is available with simple configurations to tailor the ODROID-HC4 to your specification. The HC4 is built with two high performance SATA port and a Gigabit Ethernet port, to build a faster network storage device, and also supports RAID configurations. The HC4 is designed to hold 2x 2.5 inch HDD/SSDs or 3.5inch HDDs in any combination.
The HC4 is based on the very powerful Amlogic S905X3 chip, just like the ODROID-C4. It can run Samba, FTP, NFS, SSH, NGINX, Apache, SQL, Docker, WordPress and other server software smoothly with full Linux distributions like Ubuntu, Debian, Arch and OMV.
Note: The 15v/4A power supply is not included with this device and must be purchased separately.
Amlogic S905X3 Processor Quad-Core Cortex-A55 (1.8GHz)
4GB DDR4 RAM with 32-bit bus width (PC4-21333 grade)
Dual SATA-3 port for 3.5inch and/or 2.5inch HDD/SSD storage; UHS-1 capable micro-SD card slot for boot media
Gigabit Ethernet port (RTL8211F)
Digital audio over HDMI; 1x HDMI 2.0 (up to [email protected] with HDR, CEC, EDID)
USB 2.0 Host
UART serial console
1x DC Jack (5.5/2.1mm) rated for 14.5~15.5VDC
84 x 90.5 x 25mm
280g including heatsink, fan and case
Form Factor: Board Dimensions: 84mm x 90.5mm x 25.0mm
Heatsink Dimensions: 40mm x 32mm x 10mm
Weight: 280g including heatsink, fan and case
Processor: Amlogic S905X3 Processor
L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor; L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor; L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by 4 processors
Quad-Core Cortex-A55 (1.800GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory: DDR4 4GiB with 32-bit bus width
Data rate: 2640 MT/s (PC4-21333 grade)
1.2Volt low power design
Storage: 1x Micro SD slot (DS/HS mode up to UHS-I SDR104)
Networking: 1x GbE LAN ports (RJ45, supports 10/100/1000 Mbps); Realtek RTL8211F (Ethernet transceiver); LED indicators: Green LED Flashing by data traffics at 100Mbps connection, Amber LED Flashing by data traffics at 1000Mbps connection
Video: 1x HDMI 2.0 (up to [email protected] with HDR, CEC, EDID)
Audio: 1x HDMI digital output
Cooler: 1x Passive heatsink ( 40x32x10 mm ) on the CPU of PCB board; 1x Hydraulic Bearing FAN Rated 5V, 100mA, Max Speed @ 4000RPM, Air Flow @ 4.3CFM, Air Pressure (In H2O) @ 0.053, Noise Level @ 23.9dBA, Dimension @ 40 x 40 x 10.6mm, with Wire & Connector 80mm & 4 pin 1.25mm pitch
External I/O: 1x USB 2.0 host port, 1x Debug serial console (UART), 2x SATA Connectors
Other features: IR receiver for remote controller
System LED Indicators: Red (POWER) Solid light when DC power is connected, Blue (ALIVE) Flashing like heartbeat while Kernel is running.
Power: 1x DC jack: outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm
DC input: 14.5V ~ 15.5V, DC 15V/4A power adapter is recommended
Power consumption with two ST2000DM006 HDDs: IDLE(with HDD in spin-down) ≃ 5.88W, Active(using SAMBA) ≃ 15.59W, Suspend ≃ 0.29W
Includes: Board + Case Shell + OLED
Specifications for Odroid HC4
|OLED Panel||with Oled or without Oled|
with Oled , without Oled
