oDroid M1 4/8GB

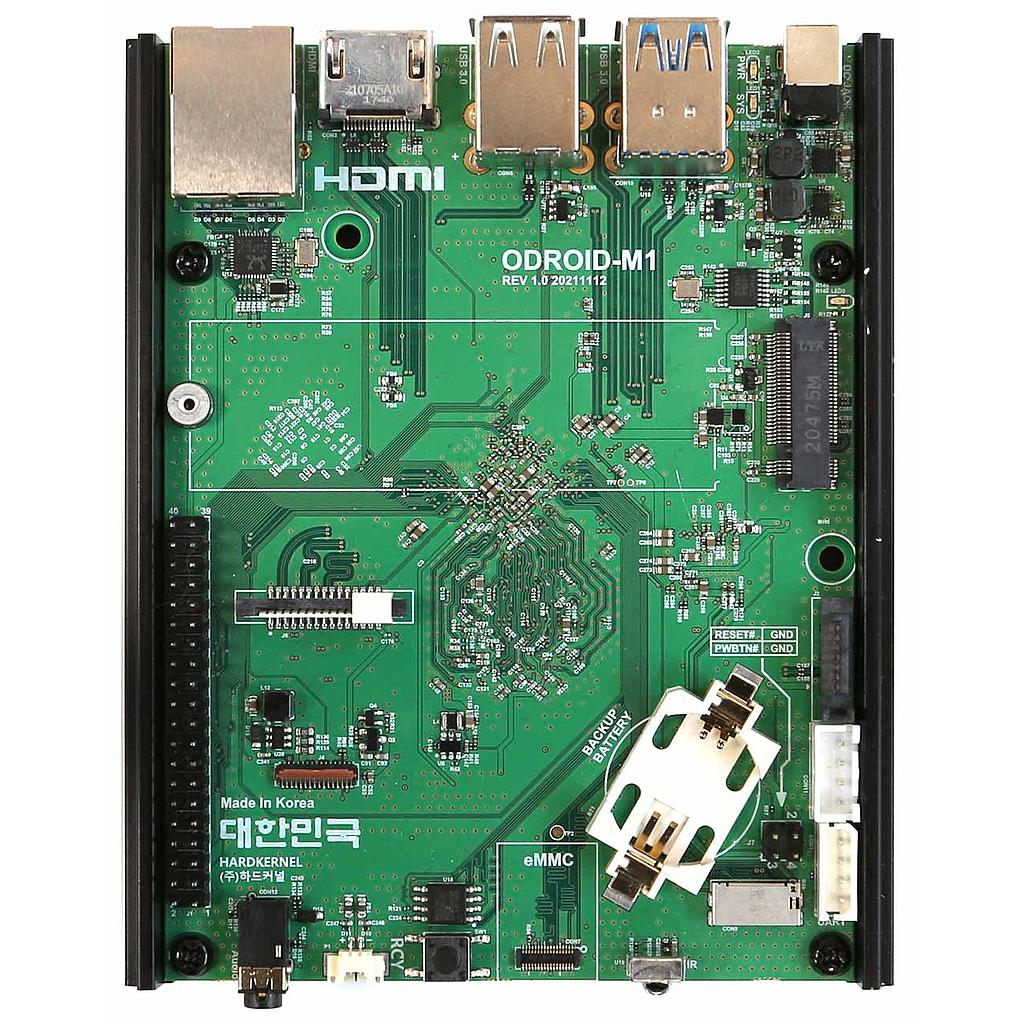

oDroid M1 4/8GB Small Board Computer
The ODROID-M1 is a SBC with a broad range of useful add-on developed for use in a expansive range of embedded system applications.
To achieve this goal, we have developed various hardware accessories and device driver software over the past 10 months.
In addition, RK3568B2, the core brain of ODROID-M1, is considered suitable for embedded application use as the SoC manufacturer (Rockchip) guarantees supply for the next 15 years.
Therefore, we expect we can supply the ODROID-M1 boards to our important B2B customers until the year 2036 or beyond.
Accessories:
Specifications
| Form Factor | Board Dimensions: 90mm x 122mm x 16mm Heatsink Dimensions: 100mm x 123mm x 19mm Weight: 253 g including heatsink |
| Processor | Rockchip RK3568 Processor L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by 4 processorsQuad-Core Cortex-A55 (1.992GHz) ARMv8-A architecture with Neon and Crypto extensions Mali-G52 MP2 GPU with 4 x Execution Engines (650Mhz) |
| NPU | 0.8Tops@INT8, integrated high-performance AI accelerator RKNN NPU Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet |
| Memory | 4 or 8GiB LPDDR4 with 32-bit bus width Data rate: 3120 MT/s, up to 1,560MHz |
| Storage | 1 x eMMC slot 1 x Micro SD slot (DS/HS mode up to UHS-I SDR104) 1 x NVME M.2 SSD (PCIe 3.0 x 2) 1 x SATA3.0 |
| Networking | 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) – Realtek RTL8211F (Ethernet transceiver) – LED indicators * Green LED: Flashing by data traffics at 100Mbps connection * Amber LED: Flashing by data traffics at 1000Mbps connection |
| Video | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID) 1 x MIPI-DSI (works with 800 x 1280 LCD) |
| Audio | 1 x 3.5mm phone jack 1 x mono speaker output 1 x HDMI sound |
| External I/O | 2 x USB 2.0 host port 2 x USB 3.0 host port (or 1 x USB 3.0 host + 1 x USB 2.0 OTG port) 1 x Debug serial console (UART, 1.5Mbps N81) 1 x SATA Connector 1 x MIPI-CSI Camera Interface (15 pin) 1 x MIPI-DSI LCD Interface (31 pin) 1 x 40pin GPIO header |
| Other features | IR receiver for remote controller RTC and backup battery holder (to keep time and date for several months without main power input) System LED Indicators: – Red (POWER) – Solid light when DC power is connected – Blue (ALIVE) – Flashing “heartbeat” while Kernel is running. Solid On when in the u-boot stage. |
| Power | 1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm DC input : 7.5V ~ 15.5V – DC 12V/2A power adapter is recommended – IDLE : ≃ 1.25W – CPU Stress : ≃ 4.44W (Performance governor) – Power Off : ≃ 0W |
We recommend that you use a good quality 12V/2A power adapter for powering the ODROID-M1
Specifications for oDroid M1
| RAM/Memory | 8GB or 4GB |
|
RAM/Memory |
8GB , 4GB |
