5inch HDMI display with Multi-touch and Audio capability

South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
No Charge - 3 Appian Place, 373 Kent Ave, RandburgEffortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

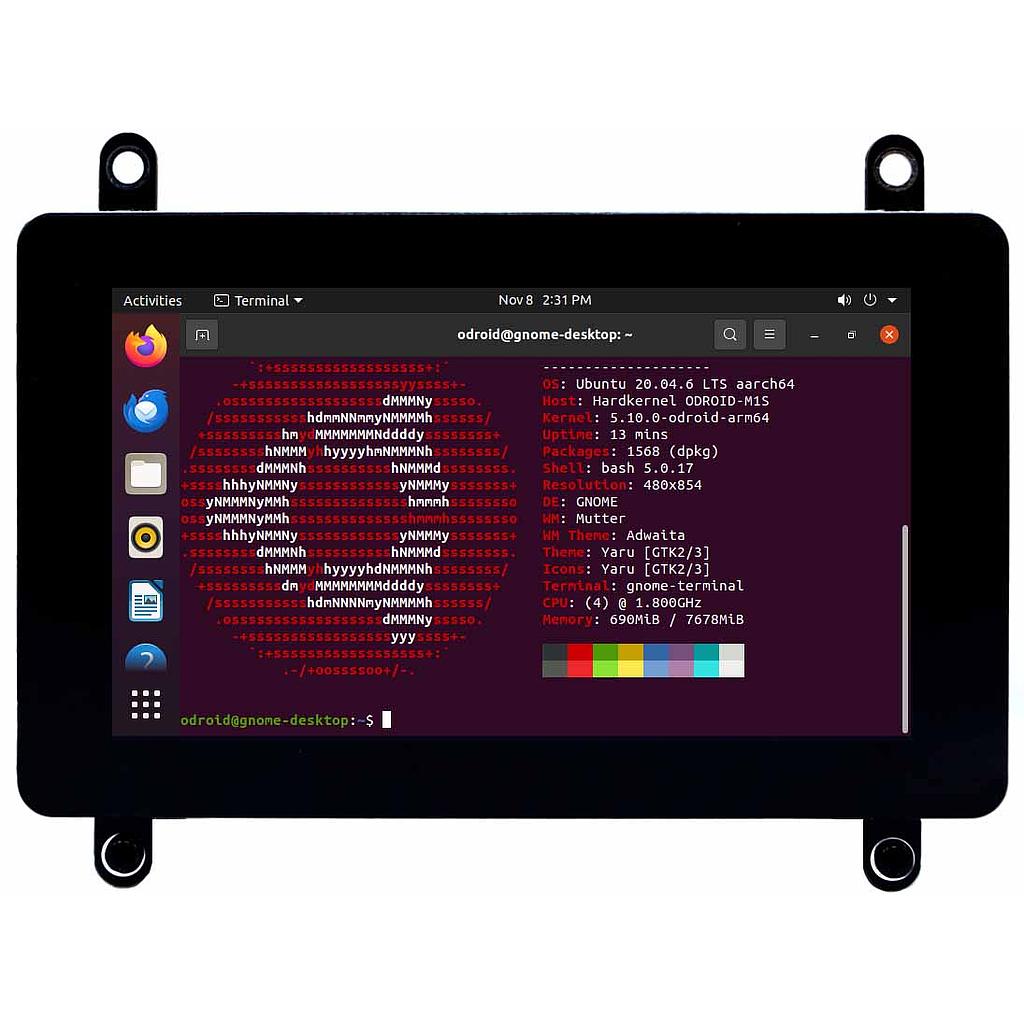

ODROID Display - VU5S

With Multi-touch and Audio capabilities

The two-lane MIPI-DSI port facilitates a direct connection to an LCD panel. A pre-assembled 5-inch wide viewing angle LCD with a resolution of 480×854 and capacitive multi-touch screen is provided. The ODROID-Vu5S is specifically designed for use with the ODROID-M1S and can only be utilized via the MIPI DSI Connector (J7) on the M1S. To attach the Vu5S to an assembled ODROID-M1S housed in a case, the I type Bracket PCB is necessary.


5-inch TFT-LCD
Portrait 480(H) x 854(V) pixels hardware native resolution
Mechanical Dimensions : 136(W) x 83.4(H) mm (Assembled with I Bracket: 106)
5 finger capacitive touch input
Viewable screen size : 109.53 x 61.56 mm (active area)
Power consumption : 1.5W ± 10% (when 50% of duty-cycle for the backlight PWM driver)

Package includes:

A. Assembled 5inch TFT LCD + multi touch screen * 1EA
B. M3 x 40(BLACK) Support * 3EA including a spare part
C. M3 x 7(BLACK) Bolt * 7EA including a spare part
D. M3 x 5(SILVER) Bolt* 5EA including a spare part
E. Vu5S LCD Frame Board for M1S * 1EA

F. Vu5S I form Bracket Board for M1S * 2EA
