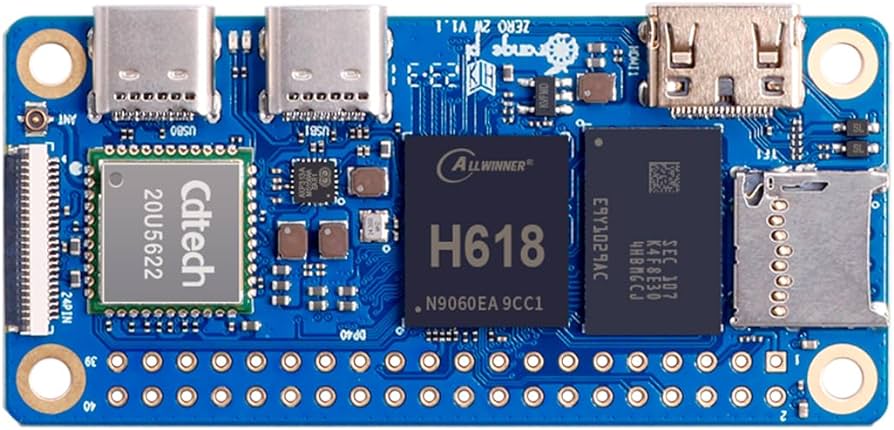

                                                                                          Orange Pi Zero 2W

                                                                                          Enhancing Convenience And Efficiency

                                                                                          The Orange Pi Zero 2W is powered by the Allwinner H618 high-performance quad-core Cortex-A53 processor, boasting speeds of up to 1.5GHz. It integrates a Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. Offering memory options of 1GB, 1.5GB, 2GB, or 4GB LPDDR4, it also supports a 16MB SPI Flash and features Wi-Fi 5 and Bluetooth 5.0 connectivity.

                                                                                          Expanding its functionality, the Orange Pi Zero 2W can accommodate USB 2.0, 100M Ethernet, IR receiver, audio output, TV-out, and a power button via its 24-pin connector with an adapter board. Additionally, its 40-pin expansion port enriches the motherboard's interfaces, enhancing its development potential.

                                                                                          Following the compact and elegant design ethos of the Zero series, the Orange Pi Zero 2W boasts dimensions of 30mm x 65mm x 1.2mm. Its versatility extends its application to TV boxes, smart screen casting devices, smart homes, smart gateways, IoT, and various other fields.

                                                                                          Operating system support includes Android 12 TV, Debian 11, Debian 12, Ubuntu 22.04, Ubuntu 20.04, Orange Pi OS (Arch), and other compatible systems.

                                                                                          Projects for the Orange Pi
                                                                                          • Media Streaming Devices:

                                                                                          • Remote Monitoring and Control

                                                                                          • Data Logging and Analysis

                                                                                          • Edge Computing

                                                                                          • Embedded Systems Development

                                                                                          Micro SD Card
                                                                                          Power Supply


                                                                                           Allwinner H618 Quad-Core Cortex-A53 Processor 1.5GHz
                                                                                          Mali G31 MP2
                                                                                          - Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
                                                                                           LPDDR4:1GB/1.5GB/2GB/4GB (optional)
                                                                                           SPI Flash: 16MB
                                                                                          Wi-Fi + BT
                                                                                          Wi-Fi5.0+BT 5.0
                                                                                          Video output
                                                                                           1*Mini HDMI TX 2.0 port supporting 4K@60FPS
                                                                                           Type-C USB2.0*2
                                                                                          SD card interface
                                                                                           1*Micro SD card interface
                                                                                          Expansion interface
                                                                                          24Pin expansion interface: USB2.0*2, 100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons*2
                                                                                           40Pin function expansion interface, supporting the following interface types:
                                                                                          Power Source
                                                                                           Type-C 5V2A
                                                                                          Supported OS
                                                                                           Android 12 TV,Debian11,Debian12,Ubuntu22.04,Ubuntu20.04,Orange Pi OS(Arch)
                                                                                          PCB Dimension
                                                                                           30mm x 65mm x 1.2mm


                                                                                          - Onboard eMMc OS flashing will cost an additional R400.
                                                                                          - MicroSD card flashing is an additional R100, you will need to purchase a MicroSD card as well.
