PCT-102 Push Splice Cable Connector Conductor

0.86 0.86 ZAR


Add to Cart

South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
No Charge - 3 Appian Place, 373 Kent Ave, Randburg

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

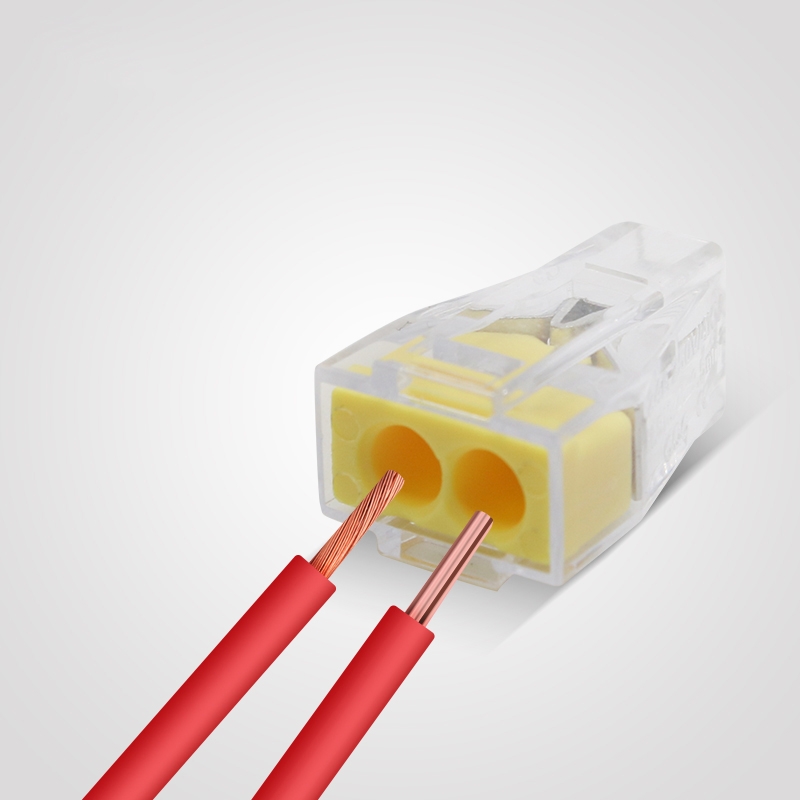

Push In Wire Connector

2 Pins Push In Wire Connector 0.75-2.5mm² PCT-102 Yellow

  • This is a PCT-102 push wiring connector for junction box 2 pin conductor terminal block wire connector.

  • These 2 hole wire connectors allow you to easily splice on connections to electrical cables. These connectors can splice a single wire up to 1 more wire. Combine any combination of solid, flexible and flexible copper wires faster and more reliably. It connects lights, parasol curtains, awnings, doors and gate controls, Interphone, pumps, speakers, etc.

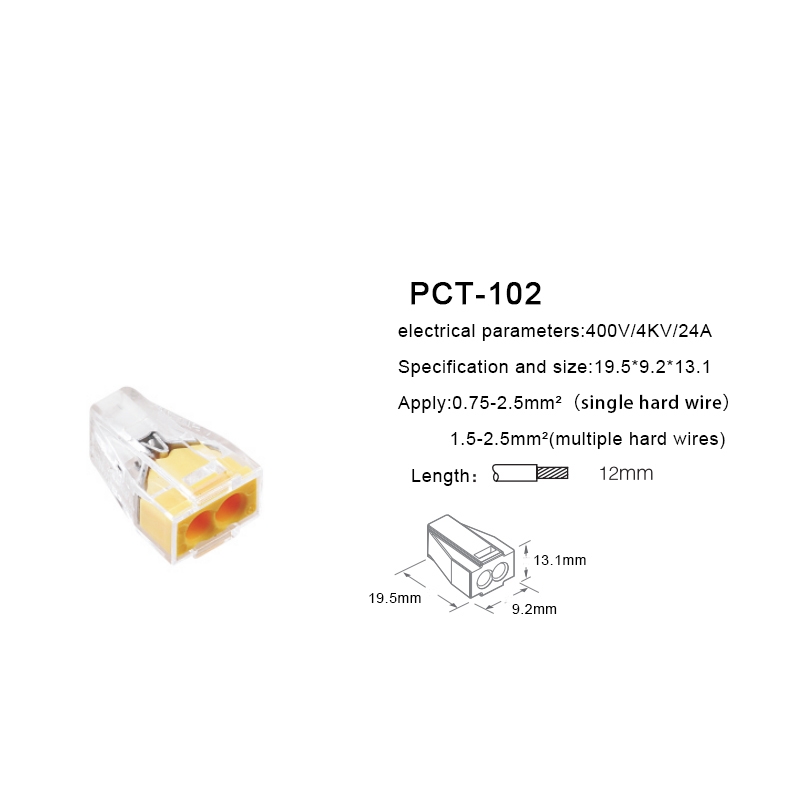

  • Specifications:
        - Wire cross section (mm2): 0.75-2.5 Single laid wire
        - Wire cross section (mm2): 1.5-2.5 Stranded conductor
        - Rated voltage/Current(V/A):400/24
        - Rated impulse voltage (KV): 4
        - Strip length(mm): 12mm
        - Insulation material: PA66
        - Anti-fire Grade: V-0 or V-2
        - Contact material: Copper alloy
        - Contact points: Tin coating
        - Size:19.5 X 9.2 X 13.1 (mm)
