4 Pin Push Splice Cable Connector Conductor
PCT-104 push wiring connector for junction box 4 pin conductor terminal block wire connector.
These 4 hole wire connectors allow you to easily splice on connections to electrical cables. These connectors can splice a single wire up to 1 more wire. Combine any combination of solid, flexible and flexible copper wires faster and more reliably. It connects lights, parasol curtains, awnings, doors and gate controls, Interphone, pumps, speakers, etc.
- Wire cross section (mm2): 0.75-2.5 Single laid wire
- Wire cross section (mm2): 1.5-2.5 Stranded conductor
- Rated voltage/Current(V/A):400/24
- Rated impulse voltage (KV): 5
- Strip length(mm): 12mm
- Insulation material: PA66
- Anti-fire Grade: V-0 or V-2
- Contact material: Copper alloy
- Contact points: Tin coating

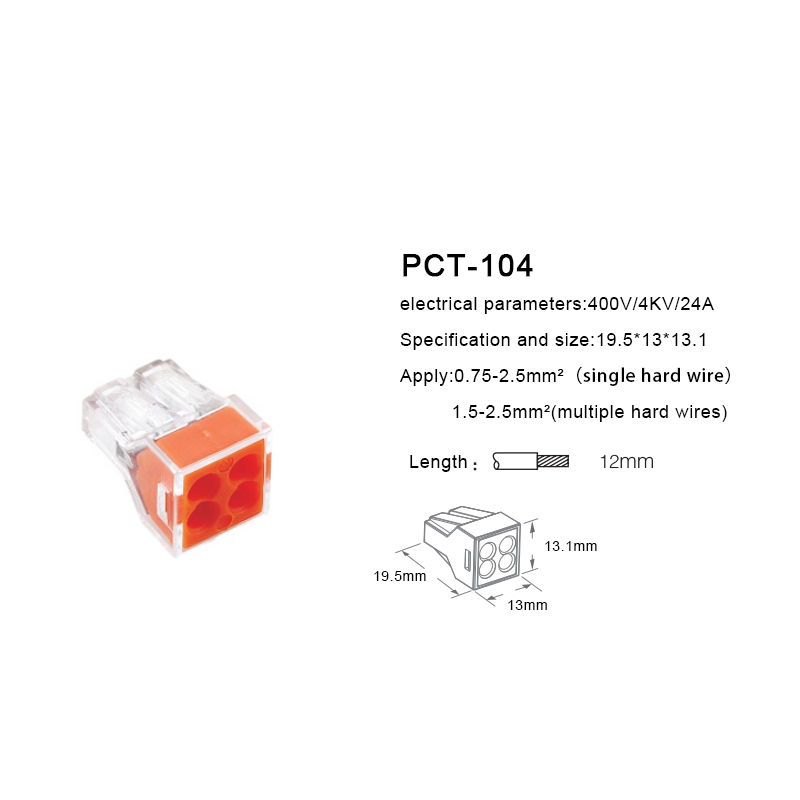

- Size:19.5 X 13 X 13.1 (mm)
