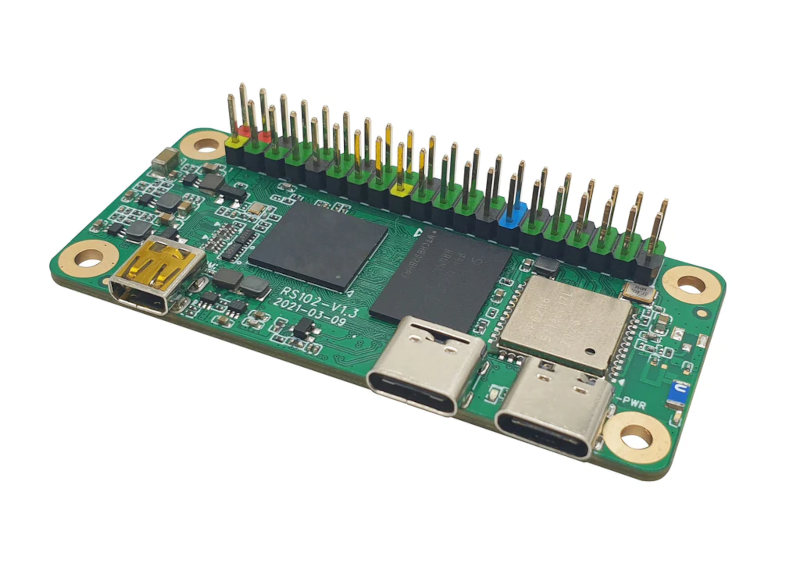

RADXA Zero
Powered by a Amlogic S905Y2 64bit quad core processor
There are several variants of the RADXA Zero available. All our options come with headers and internal antennas. If there is a variant you are looking for let us know and we will source it if we don't have it.
Specifications:
Amlogic S905Y2 64bit quad core processor
Quad Cortex-A53, frequency 1.8Ghz, 12nm
GPU
Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile
Memory LPDDR4
64bit dual channel [email protected]/s, 1GB/ 2GB or 4GB
Wifi/BT Antenna
Wifi/BT with external antenna support*
* WIFI4/BLE4 and WIFI4/BLE5 available for different models!
Storage eMMC 5.1
soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB
Micro SD card
uSD slot supports up to 128G uSD card
Display Micro HDMI
HDMI 2.1, [email protected] HDR
Peripherie
HD codec H265/VP9 decode [email protected]
USB 3.0 Type-C HOST x1
USB 3.0 HOST
dedicated USB3.0 channel
USB 2.0 Type-C OTG x1
USB 2.0 OTG
Network (depending on the model)
Wireless 802.11 abgn wifi 2,4GHz, Bluetooth 4.2
Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0
IO 40-pin expansion header (depending on the model):
- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin
Others
Crypto Engine
one button
Size 66mm x 30mm
Specifications for RADXA Zero
| RAM/Memory | 1GB or 2GB or 512MB or 4GB/16GB EMMC or 4GB/32GB EMMC |
|
RAM/Memory |
1GB , 2GB , 512MB , 4GB/16GB EMMC , 4GB/32GB EMMC |
