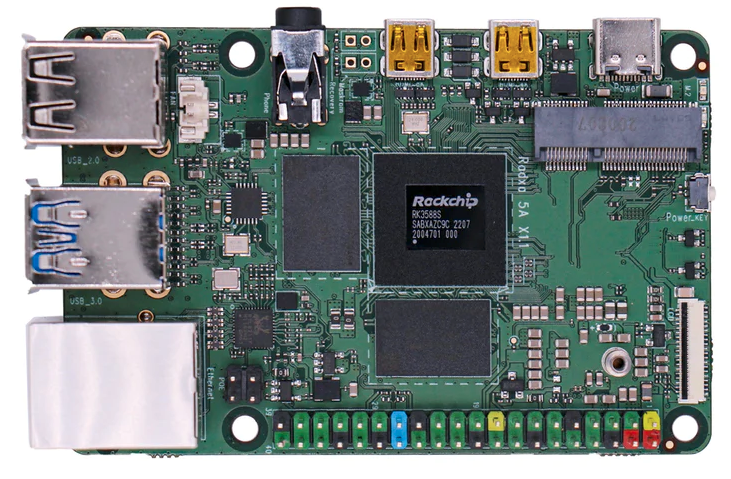

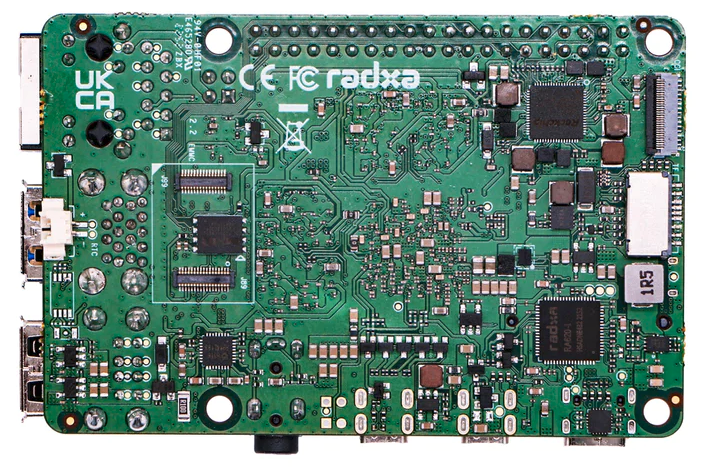

ROCK PI 5 Model-A/4GB

RK3588S 64bit octa-core processor

The most recent iteration of RADXA's Single Board Computer (SBC), built upon the Rockchip RK3588S platform, is presented in a condensed form factor and incorporates an extensive array of cutting-edge capabilities, notable features, and expansion opportunities. These SBCs are accessible with a selection of LPDDR4x RAM capacities (4GB, 8GB, and 16GB).


Specifications:

RK3588S 64bit octa-core processorQuad Cortex®‑A76 @ 2.2~2.4GHz and a quad Cortex®‑A55 @ 1.8GHz based on Arm®
DynamIQ™ confguration
GPUArm Mali™ G610MC4 GPU supporting:

– OpenGL® ES1.1, ES2.0, and ES3.2
– OpenCL® 1.1, 1.2 and 2.2
– Vulkan® 1.1 and 1.2
– Embedded high-performance 2D image acceleration module
NPUSupporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing power is up to 6TOPs
Memory LPDDR4
64bits LPDDR4x RAM with 4, 8, or 16GB
SPI Flash
32MB SPI flash soldered
Display HDMI and MIPI DSI
Triple display support via two HDMI, and one MIPI DSI
H.265/H.264/AV1/AVS2 multi-video decoder up to 8K@60fps
H.264/H.265 multi-video decoder up to 8K@30fps
Interfaces・ 1x USB Type‑C™ port for power supporting USB PD 2.0 and QC 2.0
・ 1x Micro SD Card
・ 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution)

・ 2x USB2 Type A HOST ports
・ 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
・ 1x Gigabit Ethernet port (supports PoE with add‑on PoE HAT)
・ 1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support
・ 1x eMMC module connector for eMMC 5.1 support
・ 1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI)
・ 1x LCD Display port (four‑lane MIPI DSI)
Miscellaneous– 1x RTC battery connector
– 1x PWM fan connector
– 1x Power button
– 1x Recovery pin, 1x Maskrom pin
– 1x Power LED, 1x User LED
40 pin 0.1” (2.54mm) header supporting a wide range of interface options:– Up to 5 x UART(2x with flow control)
– Up to 3 x SPI bus
– Up to 6 x I2C bus
– Up to 1 x PCM/I2S
– Up to 2 x SPDIF
– Up to 7 x PWM
– Up to 1 x CAN
– Up to 1 x ADC
– Up to 27 x GPIO
– 2 x 5V DC power in/out
– 2 x 3.3V power out
Software・ ArmV8 Instruction Set
・ Debian/Ubuntu Linux support
・ Android 12 support
・ OpenFyde OS(Chromium OS fork) support
・ RKNPU2 NPU software stack
・ Hardware access/control library for Linux/Android
USB 3.0 HOST x31x USB-C
2x USB-A
Network
LAN
1GbE LAN with PoE support
*Additional HAT is required for powering via PoE
WIFIVia optional WIFI module
OthersRTC battery connector for time backup
USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A
Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A
Power adapter with fixed voltage in 5.2V to 20V range on the USB Type‑C port
ROCK 5A has been designed to operate between 0°C to 50°C
Size 85mm x 56mm


Specifications for ROCK PI 5 Model A

RAM/Memory 4GB or 16GB

RAM/Memory

4GB , 16GB
