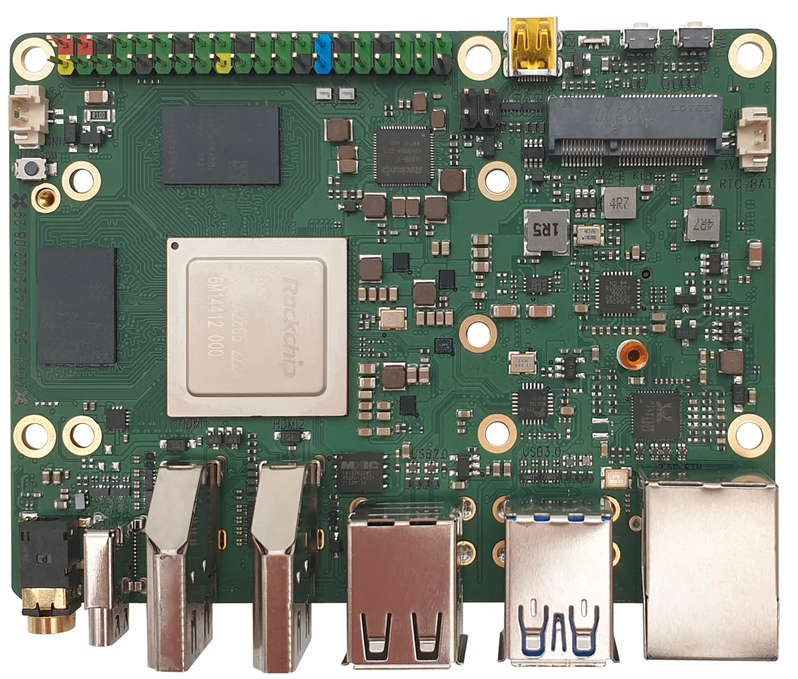

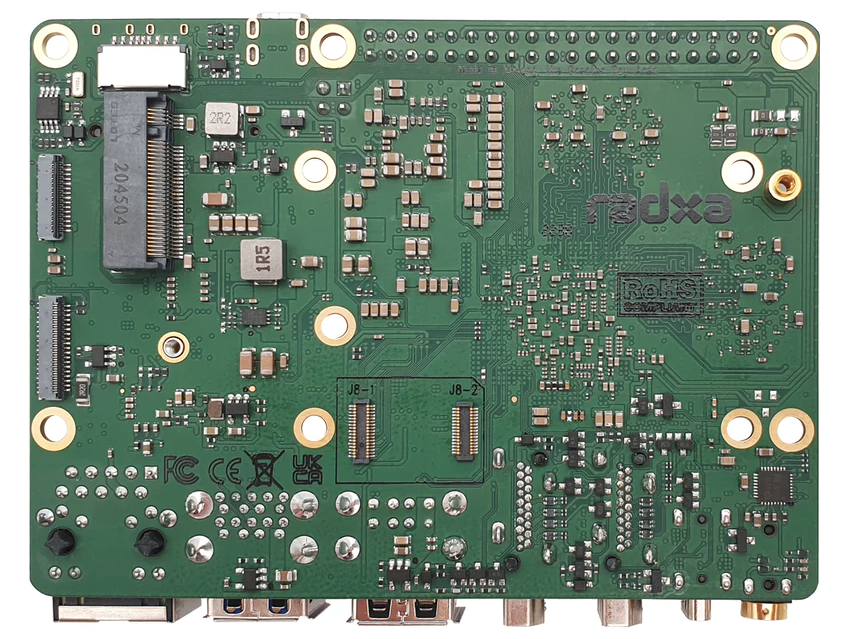

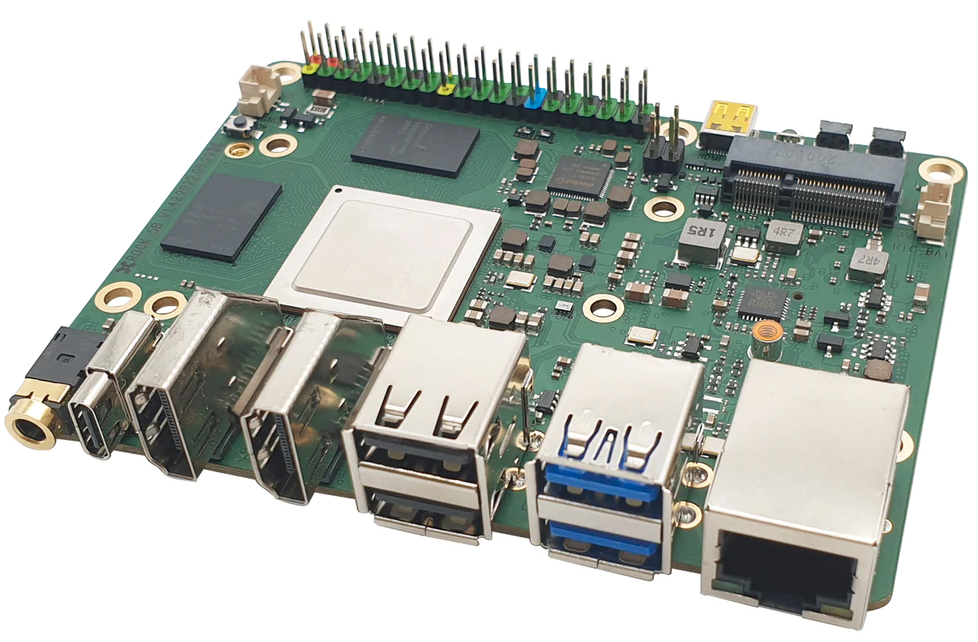

Rock Pi 5 Model B

3,593.75 3593.75 ZAR


This combination does not exist.

Add to Cart

South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
No Charge - 3 Appian Place, 373 Kent Ave, Randburg

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

Rock Pi 5 Model B/8GB

RK3588 64bit octa core ARM based SBC

RADXA has introduced its newest iteration of single-board computers, utilizing the recently launched Rockchip RK3588 SOC and adopting the latest standard form factor. This advanced SOC technology, manufactured using an 8nm process, is complemented by a comprehensive set of features and exceptional SBC development expertise. These factors are set to establish novel benchmarks in the worldwide SBC market. Coupled with competitive pricing, this SBC paves the way for exploration into previously untapped market segments.


RK3588 64bit octa core processor

Quad Core A76 2.4GHz + Quad Core A55 1.8GHz


Mali G610MP4 GPU (up to 5 channel 4k UI)

8K 10bit decoder, 8K encoder



Memory LPDDR4

LPDDR4x with 4, 8 or 16GB

SPI Flash

32MB SPI flash soldered


WiFi 6E and BT5.2 support via opt. WiFi module

eMMC module (removable)

Industrial level high performance eMMC storage, 16G/32G/64G/128G available

Micro SD card

uSD slot supports up to 128G uSD card

M.2 Interfaces

M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes

M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported

Display HDMI

Triple display support (with HDR)

2x HDMI 2.1 up to 8k@60FPS

1x USB-C with DP up to 8K@30FPS

HDMI in with up to 4K@60FPS



MIPI DSI 2 lanes via FPC connector

HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.

Audio 3.5mm jack with mic

HD codec that supports up to 24-bit/96kHz audio.


MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

USB 3.0 HOST x3

1x USB-C

2x USB-A


Wireless / Bluetooth

WiFi 6E and BT5.2


2.5GbE LAN with PoE support

additional HAT is required for powering via PoE

IO 40-pin expansion header :

- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin


RTC battery connector for time backup

Power USB PD (new generation QC/PD protocol IC)

Support USB Type C PD 2.0, 9V/2A, 12V/2A

Power Supply Qualcomm® Quick Charge™

Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A

Size 100mm x 72mm (Pico ITX form factor)

Specifications for Rock Pi 5 Model B

RAM/Memory 4GB or 8GB


4GB , 8GB
