UPS Hat Raspberry Pi
Uninterrupted Power Supply
The UPS Hat for the Raspberry Pi has a Stable 5V Power Output and it is able to charge the batteries and provide power output at the same time from an external power supply, you can automatically switch over to the batteries output if the external power supply is unavailable, this keeps the system running without any issues.

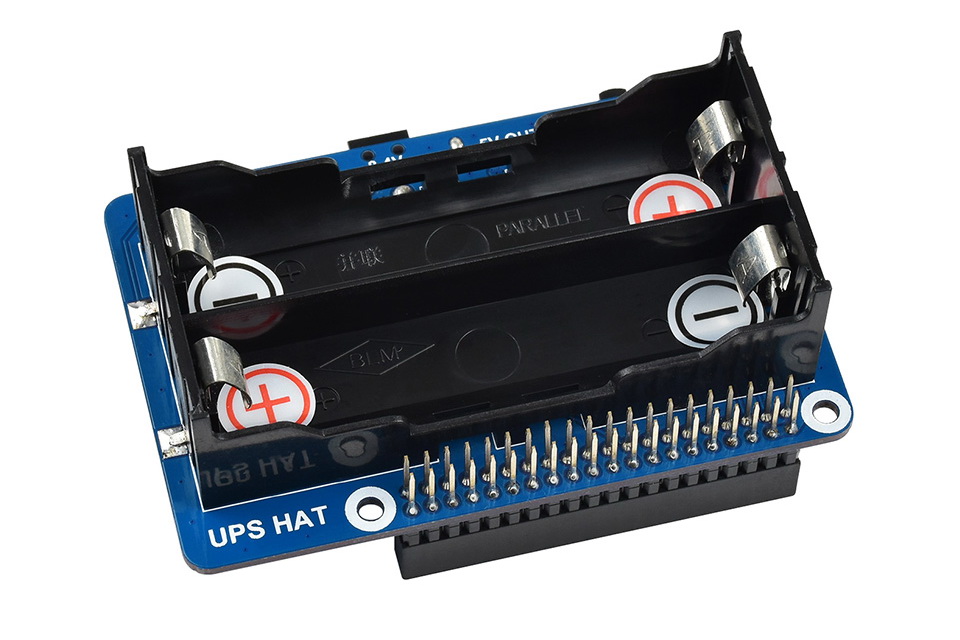

The batteries used for the Raspberry Pi UPS Hat are 18650 lithium-ion batteries - (NOT included).
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real-time
Multi battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 2.5A continuous output current
5V USB output, convenient for powering other boards

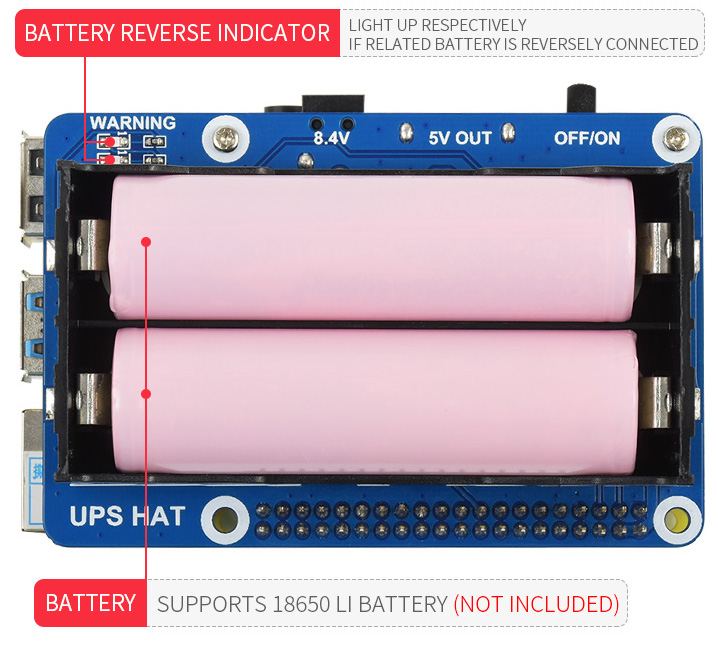

Batteries warning indicators, easy to check if the battery is connected correctly
Comes with development resources and manual
|Output voltage||5V||Charger ||8.4V 2A|
|Control bus ||I2C ||Dimensions ||56 × 85mm|
|Battery support||18650 Li battery (NOT included)||Mounting hole size ||3.0mm|
