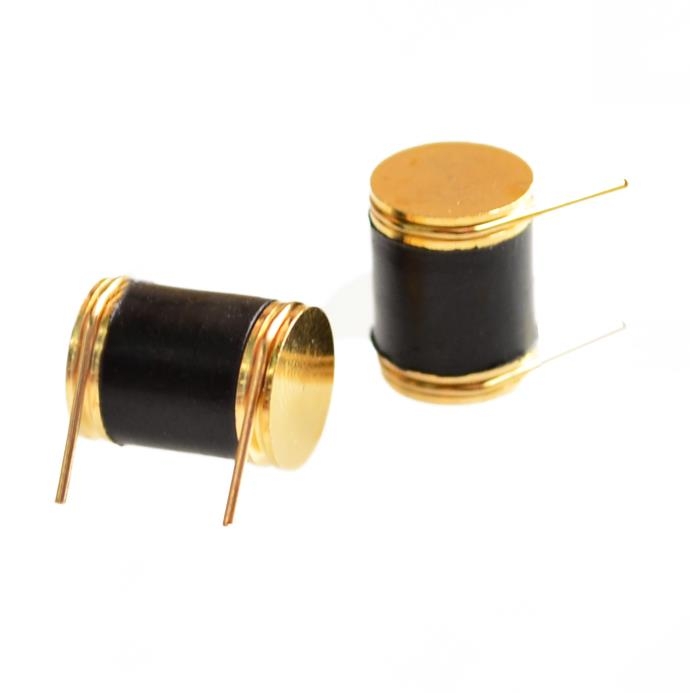

801S vibration sensor

The 801S Vibration Sensor is a specialized, gold-plated sensing device designed to detect mechanical shocks and tremors with high precision. Unlike basic spring-based vibration switches, the 801S features a unique internal structure that allows it to sense micro-vibrations across a wide frequency range. It is highly regarded for its longevity and "omni-directional" sensing capability, meaning it can trigger an alert regardless of the angle of impact. Operating typically between 3.3V and 5V, it is an ideal component for low-power security systems, vehicle alarms, and industrial equipment monitoring where detecting sudden movement or structural stress is critical.

Implementing the 801S in Smart Circuits

When used as a 3-pin module, the 801S typically provides a Digital Output (DO) that remains High under stable conditions and pulls Low when a vibration is detected. Most modules incorporate an LM393 voltage comparator and an onboard potentiometer, allowing users to manually calibrate the sensitivity threshold to filter out minor environmental noise. This adjustability makes it incredibly versatile; it can be tuned to ignore the rumble of a passing truck while still reacting to a light tap on a window. Its fast response time and compatibility with the GPIO pins of an Arduino or Orange Pi make it a foundational tool for real-time edge-computing alerts.
