Orange Pi 5 Plus

R 4,432.73 4432.7300000000005 ZAR

R 1.00

This combination does not exist.

Add to Cart


Deliveries:
South Africa: Price: R115, 2-4 working days.
International: Contact us for a quote.
Collections:
No Charge - 3 Appian Place, 373 Kent Ave, RandburgEffortlessly bridge legacy and modern technologies with our DB9 to USB Connector, enabling seamless connectivity between serial devices and USB ports.

All items subject to 1 month warranty. Extended 12 month warranty available at 20% of purchase price. t&c apply

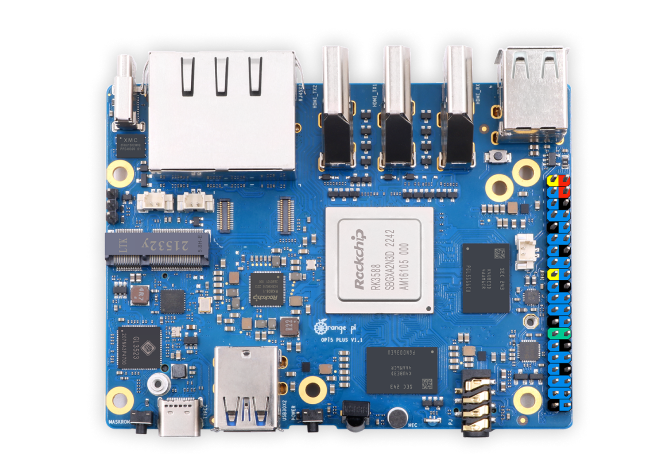

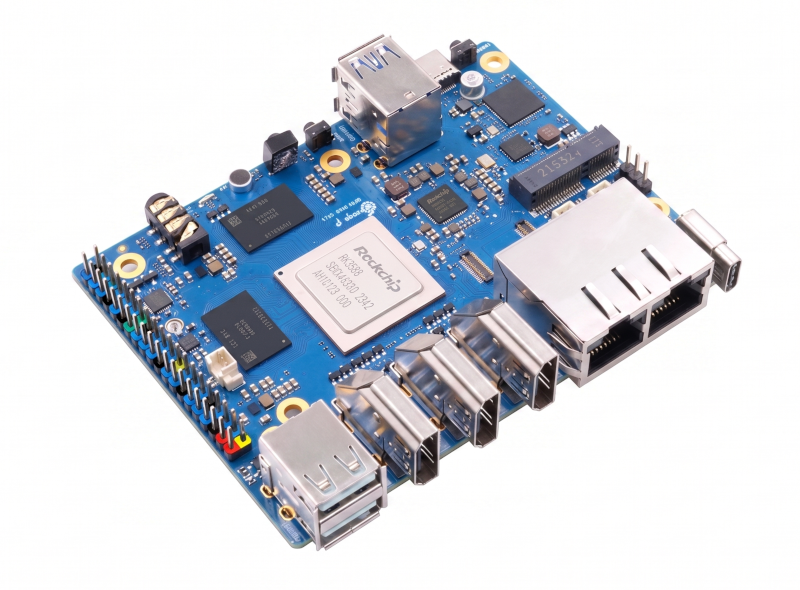

        OrangePi 5 Plus

        A Real Powerhouse Board

        This is the 8GB RAM version of the Orange Pi 5 Plus. This single-board computer (SBC) is powered by the Rockchip RK3588, an 8-core 64-bit processor featuring a quad-core A76 and quad-core A55, built with an 8nm process design and running at up to 2.4GHz. It includes an integrated ARM Mali-G610 GPU with built-in 3D capabilities and supports OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2. The embedded NPU supports mixed computing with INT4/INT8/INT16/FP16, offering up to 6Tops of computing power, suitable for edge computing needs of most end devices. It comes with 8GB/16GB LPDDR4/4x memory and an eMMC socket compatible with 32GB/64GB/256GB eMMC modules. The Orange Pi 5 Plus supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android 12, Debian 11, Ubuntu 22.04, and other operating system.
        The Orange Pi 5 Plus boasts a variety of interfaces, including two HDMI output ports, one HDMI input port, two PCIe extended 2.5G Ethernet ports, an M.2 M-Key slot for NVMe SSDs, and an M.2 E-Key slot for Wi-Fi 6/BT modules. Additionally, it features two USB 3.0 ports, two USB 2.0 ports, and two Type-C ports (one of which serves as a power connector).
        The Orange Pi 5 Plus is ideal for embedded system development enthusiasts and enterprises developing mini machine vision systems with multiple Ethernet ports. It offers enhanced performance for high-end applications, making it suitable for product customization across various industries.

        Specifications:


        SoC
        		Rockchip RK3588 (8nm LP process)
        CPU
        		8-core 64-bit processor
        4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
        GPU
        		Arm Mali-G610
        Built-in 3D GPU
        Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
        NPU
        		Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
        PMU
        		RK806-1


        Supports Wi-Fi6/BT modules

        Equipped with M.2 E-Key slot to support Wi-Fi6/BT module


        RAM
        		4GB/8GB/16GB/32GB（LPDDR4/4X）
        Memory
        		• QSPI Nor FLASH: 16MB/32MB
        • MicroSD card slot: up to 128GB
        • eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
        • M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
        USB
        		USB3.0 × 2
        USB2.0 × 2
        Type-C ×1
        Video
        		• 2x HDMI 2.1 out up to 8k@60FPS
        • 1x Type-C with DP TX 1.4A，up to 8K@30FPS
        • 1x HDMI in with up to 4K@60FPS
        • 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz
        TP interface
        		1x 6Pin FPC socket
        Camera
        		• 1XMIPI CSI 4 Lane
        Audio
        		CODEC:ES8388
        • 1xAudio 3.5mm jack with mic
        • 1xMIC In
        • 1xHDMI 2.1 eARC
        • 1xSPK
        Ethernet
        		2xPCIe 2.5G LAN（RTL8125BG)
        Expansion Port
        		40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
        PCIe M.2 M-KEY Socket
        		M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
        PCIe M.2 E-KEY Socket
        		M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
        Button
        		1×MaskROM key
        1xRecovery
        1×on/off key
        Power Source
        		Support Type-C power supply, 5V@4A
        IR receiver
        		1x IR receiver tube
        LED
        		RGB LED side light
        FAN
        		5V FAN
        RTC
        		2Pin: RTC backup battery
        Debugging
        		3Pin debug serial port (UART)
        Supported OS
        		Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu22.04、Debian11、Android12

        Accessories:
        Micro SD Card
        eMMC



        Support

        - Onboard eMMc OS flashing will cost an additional R400.
        - MicroSD card flashing is an additional R100, you will need to purchase a MicroSD card as well.

        Contact us


        Specifications for Orange Pi 5 Plus

        RAM 4GB or 8GB or 16GB or 32GB

        RAM

        4GB , 8GB , 16GB , 32GB
