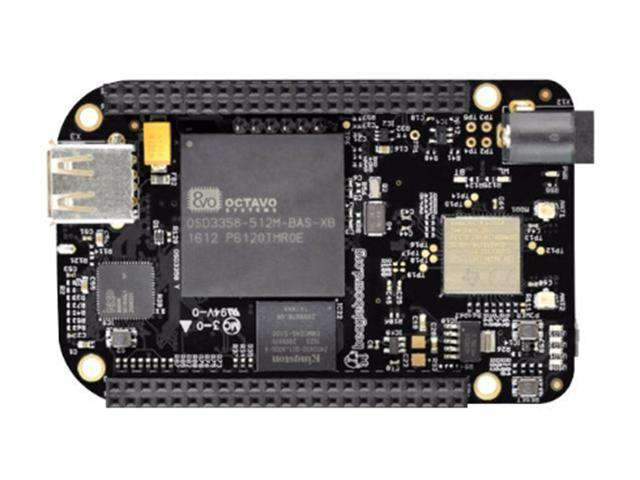

        BeagleBone Black

        Open Source, Linux-based Computer Board

        BeagleBone® Black is an affordable, versatile development board designed for both hobbyists and professional developers. Backed by a strong open-source community, it allows users to boot Linux in under 10 seconds and start developing in less than 5 minutes using just a single USB cable.

        Built around the ARM® Cortex™-A8 processor, BeagleBone® Black is ideal for early adopters and anyone exploring embedded systems. It includes essential onboard peripherals to showcase the processor’s capabilities while providing access to a wide range of interfaces. Users can expand functionality with plug-in add-on boards known as capes, or customize the hardware further by creating their own circuitry or extension boards.


        Memory

        		        ◦ SDRAM: 512MB DDR3L 800MHZ
                ◦ Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
                ◦ SD/MMC Connector for microSD
        Power management:          TPS65217C PMIC is used along with a separate LDO to provide                                        power to the system

        Debug Support:


        		          Optional Onboard 20-pin CTI JTAG, Serial Header

        Power Source


        		        ◦ miniUSB USB or DC Jack
                ◦ 5VDC External Via Expansion Header
        Connectivity        ◦ High speed USB 2.0 Client port: Access to USB0, Client mode via                                      miniUSB
                ◦ High Speed USB 2.0 Host port: Access to USB1, Type A Socket,                                      500mA  LS/FS/HS
                ◦ Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is                                      populated
                ◦ 10/100M Ethernet (RJ45)
        User Input / Output        ◦ Reset Button
                ◦ Boot Button
                ◦ Power Button
                ◦ LED power indicator
                ◦ 4 user configurable LEDs

        Video/Audio Interfaces


        		        ◦ HDMI D type interface
                ◦ LCD interface
                ◦ Stereo audio over HDMI interface
        Expansion Interfaces via 2x 46 pin headers        ◦ LCD, UART, eMMC
                ◦ ADC, I2C, SPI, PWM
        Compact Size of a Mint Tin
