MYD-Y6ULX-CHMI Display Panel

An ultra-low-cost 7-inch Human Machine Interface (HMI) display solution.

 This panel is a Linux-ready device with ported QT & can be used in various applications including Point-Of-Sale (POS), Intelligent access control and others. The panel features well-designed hardware with various peripherals and rich software resources.

Based on the 528MHz i.MX 6UltraLite ARM Cortex-A7 processor from NXP. The 7-inch capacitive LCD offers 800 x 480 pixels display resolution. The MYD-Y6ULX-CHMI display consists of MYD-Y6ULX-HMI development board that provides peripherals and interfaces including RS232, RS485, Ethernet, USB Host/Device, LCD, camera, and TF card slot.

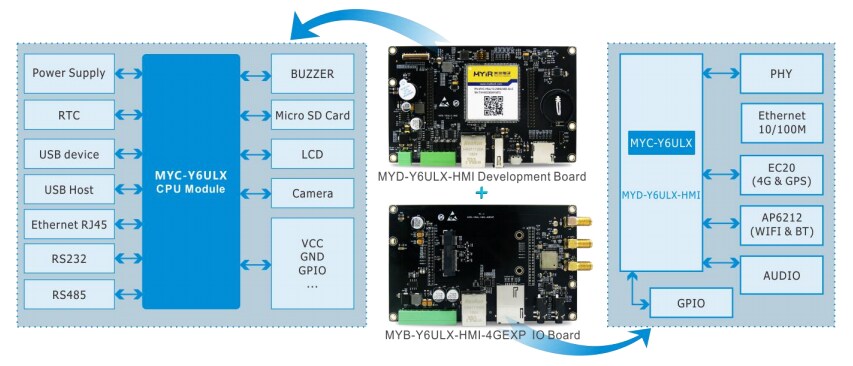

MYD-Y6ULX-CHMI Block Diagram

MYIR Tech MYD-Y6ULX-CHMI Display Panel

Features

  • 7-inch HMI display solution based on 528MHz NXP i.MX 6UltraLite ARM Cortex-A7 processor
  • Optional MYB-Y6ULX-HMI-4GEXP IO board adds Ethernet, WiFi/BT, 4G LTE module interface, and audio
  • Connectivity with USB, Ethernet, RS232, RS485, TF Card, LCD, RTC, and camera
  • 0°C to 70°C working temperature range
  • Ready-to-run Linux 4.1.15 OS with QT 5.6.2
