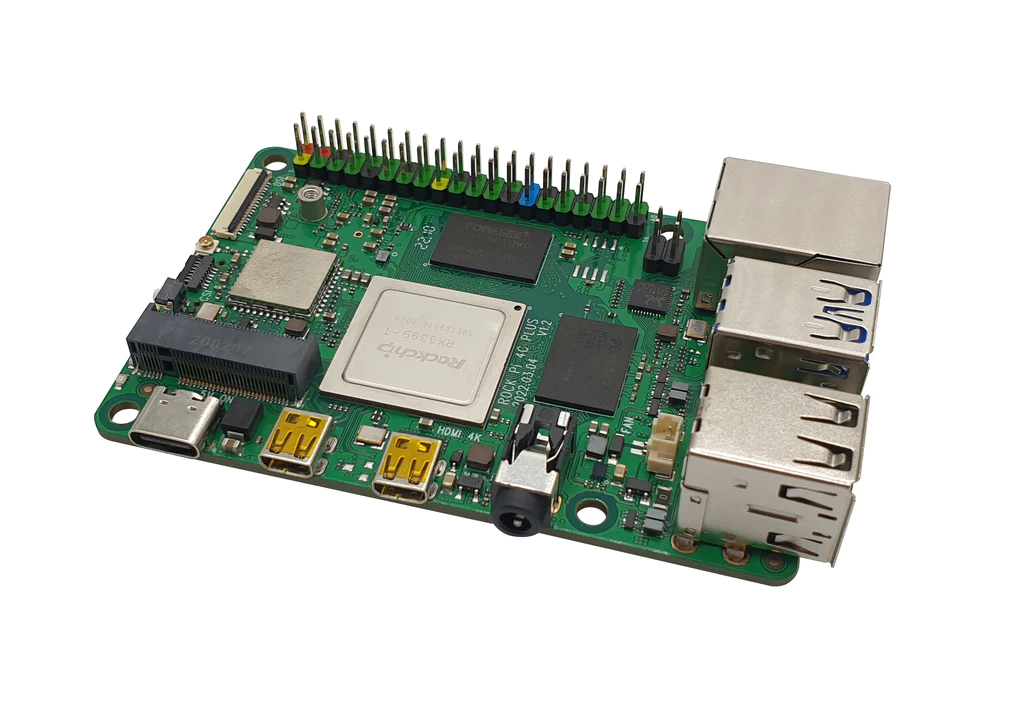

Rock Pi 4 Model C+ (4GB) Single Board Computer
Next-Gen Power and Dual-Display Versatility for Makers and Developers
The Radxa Rock Pi 4 Model C+ is a high-performance single-board computer (SBC) engineered to meet the demands of modern developers, IoT innovators, and tech hobbyists. Powered by the robust Rockchip RK3399-T hexa-core processor utilizing ARM's big.LITTLE architecture, this board seamlessly manages resource allocation across two high-performance Cortex-A72 cores and four energy-efficient Cortex-A53 cores. Backed by 4GB of high-speed 64-bit dual-channel LPDDR4 RAM and a specialized Mali-T860MP4 GPU, it delivers desktop-class responsiveness, making it a premier alternative to traditional single-board platforms.
Designed with versatility in mind, the Model C+ boasts exceptional multimedia and expansion capabilities. It sets itself apart with dual micro-HDMI outputs that support simultaneous dual-display setups—ideal for digital signage, multi-monitor workstations, and immersive 4K media streaming. Additionally, the integration of a dedicated eMMC socket and an on-board M.2 connector provides lightning-fast storage upgrades that bypass the historical bottlenecks of MicroSD cards. Complete with an integrated on/off power button for safe system shutdowns and a highly compatible 40-pin GPIO header, the Rock Pi 4 Model C+ represents a rugged, future-proof platform for your most ambitious tech builds.
Technical Specifications
| Component / Interface | Specification Detail |
| Processor (SoC) | Rockchip RK3399-T, 64-bit Hexa-Core (Dual Cortex-A72 @ 1.5GHz + Quad Cortex-A53 @ 1.0GHz) |
| Graphics (GPU) | ARM Mali-T860MP4; supports OpenGL ES 1.1–3.2, Vulkan 1.0, OpenCL 1.1/1.2, DirectX 11.1 |
| System Memory | 4GB 64-bit Dual-Channel LPDDR4 @ 3200Mb/s |
| Display Outputs | 2x Micro-HDMI (1x supporting up to 4K@60fps, 1x supporting up to 2K@60fps); 1x 4-lane MIPI DSI |
| Video Decoding | Hardware-accelerated H.265/VP9 (up to 4K@60fps) & H.264 (up to 1080p@60fps) |
| Storage Options | High-speed eMMC 5.1 connector, MicroSD card slot, and top-mounted M.2 socket |
| Wireless Connectivity | On-board Dual-Band 802.11ac Wi-Fi 5 & Bluetooth 5.0 with BLE (External antenna included) |
| Wired Networking | Gigabit Ethernet port (supports Power over Ethernet via additional PoE HAT) |
| USB Connectivity | 1x USB 3.0 HOST, 1x USB 3.0 OTG (software configurable), 2x USB 2.0 HOST |
| Camera Interface | 1x 2-lane MIPI CSI connector (supports up to 800MP cameras via 0.3mm pitch FPC) |
| Audio | 3.5mm headphone jack with microphone input; HD codec up to 24-bit/96kHz |
| Expansion Header | 40-pin GPIO (97.5% Raspberry Pi accessory compatible) featuring UART, SPI, I2C, PWM, ADC |
| Power Input | USB Type-C (Requires minimum 5V/3A supply; 5V/5A recommended when running an M.2 SSD) |
| Hardware Extras | Onboard mechanical On/Off Power Button, Real-Time Clock (RTC) battery connector, 2-pin PWM fan header |
| Dimensions | Ultra-compact 85mm x 54mm form factor |
|
Active Heat Management |
Active Heat Management No , Active Heat Management Yes |
|
RAM/Memory |
4GB |
