5506 photosensitive resistance 5MM

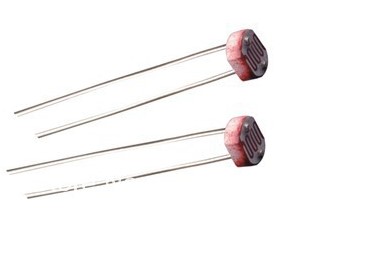

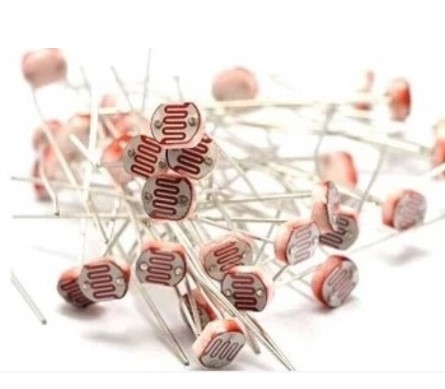

The 5506 Photoresistor, often referred to as a Light Dependent Resistor (LDR), is a specialized semiconductor component whose resistance decreases as incident light intensity increases. This 5mm cadmium sulfide (CdS) sensor is specifically tuned for high reliability and quick response times, making it a staple in automated lighting systems. The "5506" designation indicates specific resistance characteristics, typically featuring a light resistance of 2kΩ to 5kΩ at 10 lux and a dark resistance of at least 0.2MΩ. Its spectral response peaks near 540nm, closely mimicking the sensitivity of the human eye, which allows it to accurately trigger actions based on perceived ambient brightness.

Implementing LDRs in Intelligent Control Circuits

In practical applications, the 5506 photoresistor is most commonly used in a voltage divider circuit to convert changing resistance into a readable analog voltage. When paired with a microcontroller like an Arduino or Orange Pi, this setup enables the system to distinguish between dawn, dusk, and full daylight with high granularity. Because it is a passive analog component, it is incredibly power-efficient and durable, capable of operating in temperatures ranging from -30°C to +70°C. Whether it is being used to dim a display automatically, trigger a "night-light" mode, or track the sun for solar panel orientation, the 5506 remains the industry standard for simple, cost-effective light detection.
